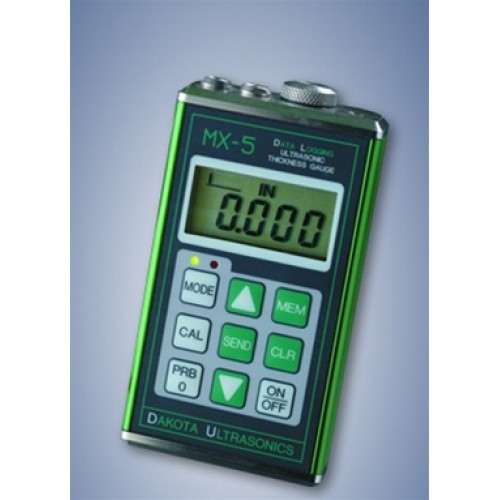

CheckLine MX-5 General Purpose Ultrasonic Thickness Gauge
- ManufacturerCheckline
- Product Code: MX-5
- Availability: Pre-Order
-
Rp0
The MX-5 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The MX-5 can be used in a Single Thickness Reading mode or in a Scan mode, where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed. The MX-5 probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.
Features
-
Resolution of 0.001 inch (0.01 mm)
-
Large, backlit LCD display retains last reading
-
Simple operator controls virtually eliminate training
-
Special-purpose probes are offered for a variety of applications
-
Switch-selected units for inches or mm
-
CE Certified
-
For underwater surveying, probe cable lengths up to 50 feet are optionally
-
Differential Mode
-
Alarm Mode
-
RS-232C Serial output for sending signal data points to a printer or computer
-
Includes NIST Calibration Certificate
The MX-5 is supplied as a complete kit with the
-
MX-5 gauge
-
Probe
-
4 oz. bottle of coupling fluid
-
2 AA batteries
-
NIST Calibration Certificate
-
Operating Instruction Manual
-
All in a foam-fitted carrying case
