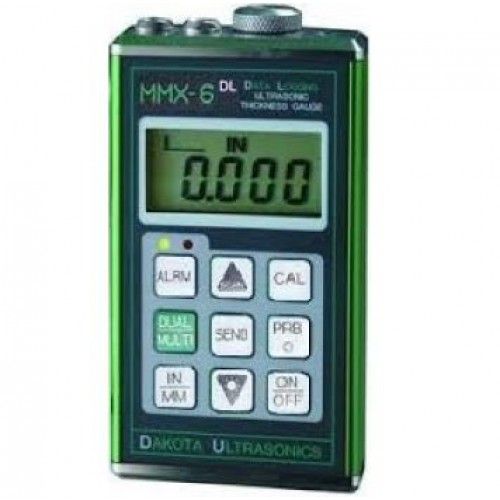

Dakota MMX-6 Ultrasonic Thickness Gauge Complete Kit, Z-142-0001

Measuring Range in Steel

Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters).

Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters).

5 year warrantyThe new MMX-6 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

The MMX-6 can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The MMX-6 probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.

Features

• Ability to measure through paint and eliminate coatings
• Resolution of 0.001 inch (0.01 mm)
• Large, backlit LCD display retains last reading
• Simple operator controls virtually eliminate training
• Special-purpose probes are offered for a variety of applications
• Switch-selected units for inches or mm
• For underwater surveying, probe cable lengths up to 50 feet are optionally
• CE Certified
• Includes NIST-Traceable Calibration Certificate
•
