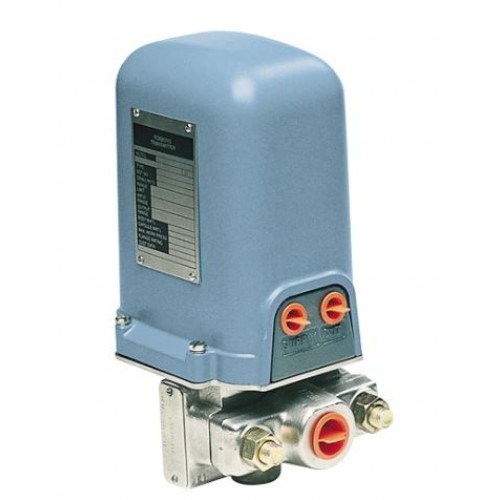

Foxboro 11GM-BS2 [11GM] Pneumatic Transmitters for Gauge Pressure Measurement
- ManufacturerFOXBORO
- Product Code: 11GM
- Availability: Pre-Order
-
Rp0
Manufacturer : Foxboro
Product No. : 11GM-BS2
Product type : 11GM Pneumatic Transmitters for Gauge Pressure Measurement
11GM : Transmitter
Span Limits : B = 0.14 and 1.4 MPa (20 and 200 psi, 1.4 and 14 bar or kg/cm2)
Capsule Material : S = 316 ss
Process Connection : 2 = Tapped for 1/2 NPT
Output Signal : 20 to 100 kPa, 3 to 15 psi, or 0.2 to 1.0 bar or kg/cm2, as specified.
Air Consumption Under Normal Operation : 0.42 m3/h (0.25 cfm) at standard conditions
Mounting : Bracket for mounting on a vertical or horizontal nominal 50 mm (2 in) diameter pipe
Air Connections : The supply and output connections are tapped for 1/4 NPT.
Weight : 4.5 Kg
Shipping weight : 5.5 Kg
