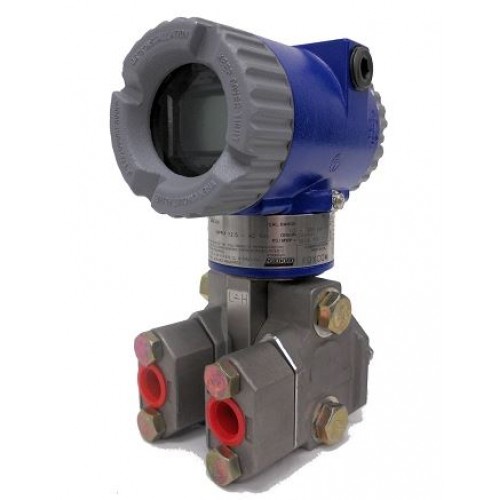

Foxboro IDP10-A22C21D-M2B1 I/A Series Pressure Transmitters

Manufacturer : Foxboro

Product No. : IDP10-A22C21D-M2B1

Product Type : I/A Series Pressure Transmitters

Operative Limits

        * Sensor Body Temperature

                    - Silicone Fill Fluid : -46 and +121°C (-50 and +250°F)

                    - Fluorinert Fill Fluid : -29 and +121°C (-20 and +250°F)

                    - pvdf Inserts : -7 and +82°C (20 and 180°F)

Electronics Temperature : -40 and +85°C (-40 and +185°F)

        * With LCD Display : -40 and +85°C (-40 and +185°F

Relative Humidity : 0 and 100%

Supply Voltage(c) : 11.5 and 42 V dc

Output Load : 0 and 1450 ohms

Mounting Position : No Limit

Vibration : 6.3 mm (0.25 in) double amplitude from 5 to 15 Hz with aluminum housing and from 5 to 9 Hz with 316 ss housing

0 to 30 m/s (0 to 3 “g”) from 15 to 500 Hz with aluminum housing and

0 to 10 m/s (0 to 1 “g”) from 9 to 500 Hz with 316 ss housing.

Shipping Weight : 6 Kg
