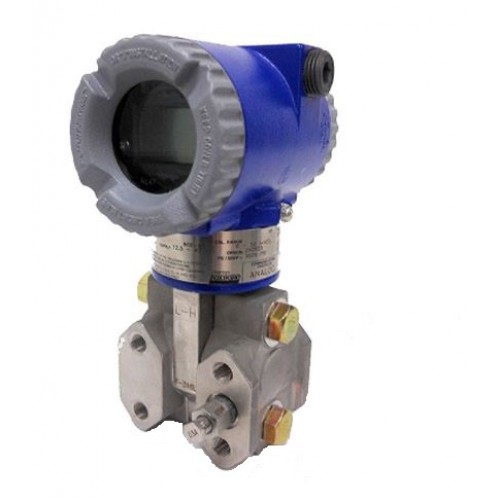

Foxboro IDP10-T22C25N-L1B1 Pressure Transmitter

Manufacturer : Foxboro

Product no : IDP10-T22C25N-L1B1

Product type : IDP10 Pressure Transmitter

I/A Series, Electronic d/p Cell Transmitter for Differential Pressure Measurement

Electronics Versions and Output Signal : T = Intelligent; Digital, HART and 4 to 20 mA (Version -T)

Structure Code - Transmitter with Traditional Structure : 22 = 316 ss Covers, 316L ss Sensor, Silicone Fill Fluid

Span Limits (Differential Pressure Units) : C = 7 and 210 kPa, 28 and 840 inH2O, 70 and 2100 mbar

Process Connector Type (Material Same as Process Cover Material) (g) : 2 = 1/2 NPT, Not with Structure Codes 78 or 79, or pressure seals

Conduit Connection and Housing Material : 5 = M20 Conduit Connection, Both Sides, Aluminum Housing (With Electrical Safety Codes E, D, M, and N only)

Electrical Safety - Also see Electrical Safety Specifications section for descriptions : N = ATEX II 3 GD, EEx nL IIC, Zone 2

Digital Indicator with Pushbuttons : L1 = Digital Indicator, Pushbuttons, and Window Cover

Bolting for Process Covers/Connectors - Not with DIN 19213 Construction or Structure Codes 78 and 79 (p) : B1 = 316 ss Bolts and Nuts (Pressure Derated; Not Available with -Y Option) (k)

Weight : 4.2 Kg

Shipping Weight : 6 Kg
