KEP HVTS-70/50 Automatic AC/DC High-Voltage Test System

KEP HVTS-70/50 Automatic AC/DC High-Voltage Test System Details

Test the insulation of high voltage cables and other non-liquid dielectric materials with this bundle pack from KEP Power Systems!

The pack includes both a control unit and a high voltage unit, allowing the user to apply specific configurations to the material under test. By using the control panel, the user can easily easily configure and test RMS values of both AC voltage and current and filters out the effects of crest factor to reduce the chance of error.

KEP's HVTS comes with the ability to perform testing both automatically or manually. In automatic mode, the system will control and adjust the unit using a built-in context menu which the user can navigate through. Alternatively, specific tests can be configured to the user's specifications and up to eight preset functions can be stored for easy repeat testing in different applications.

As the control unit is independent from the main system, the user can remain safe at all times by standing a safe distance away. Built-in auxiliary protection also automatically blocks output from the HV unit if insulating gas pressure is low, temperature is high and will block supply voltage if there is overcurrent present in the HVU supply circuit.

KEP HVTS-70/50 Automatic AC/DC High-Voltage Test System Key Features

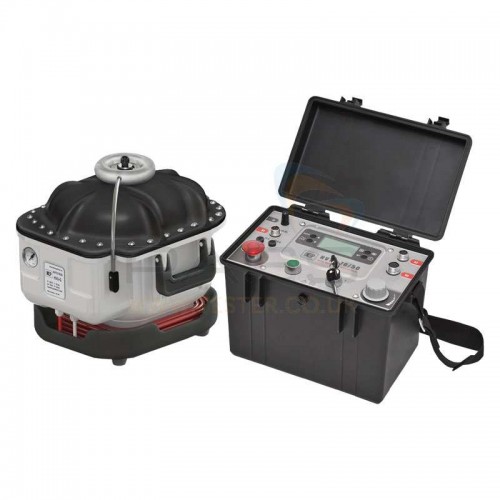

Includes a HVTS- control unit and a HVU-G high voltage unit

Applies high voltage onto a material to test insulation with control of leakage current

Measures voltage directly at the load

Removal of residual capacitive charge using secondary winding of transformer

High resistance to external influences - casing with cover prevents dust and moisture damage

Supplied alongside a belt for easy transportation

Analogue indicators - two built-in analogue scales on control unit for voltage and current measurement

High contrast graphical display and intuitive user interface

Automatic and manual testing modes - configure to your own specifications

Data saving to EEPROM - save up to eight presets for commonly used functions and save measurements to data

Indication of voltage value output by the high voltage unit

Auxiliary protection - blocks output if insulating gas pressure is low, temperature is high or if overcurrents are present

External shorting rod with visible shorting indication

Built-in pressure and temperature sensors

What's Included?

• Control Unit
• High Voltage Unit
• Power Cable (2m)
• Ground Wire (4m)
• High Voltage Wire (4m)
• Control Unit Cable Connection (3m)
• Fuse VP2-1, 1.0A
• Fuse VP3-1, 10.0A
