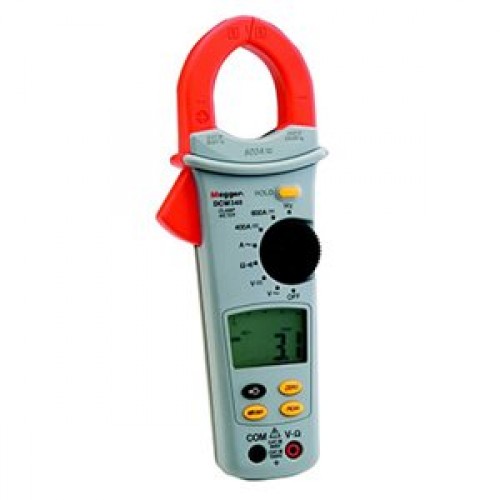

Megger DCM340 Digital Clamp Meter

Megger DCM340 Digital Clamp Meter Details

The most advanced clamp meter in Megger's DCM300 range, the DCM340 performs every test you'll need for installing, maintaining, monitoring and checking electrical systems, installations and equipment.

Both an AC and DC clamp meter, the DCM340 can measure AC/DC current to 600A and voltage to 600V. Resistance measurements up to 400Ω can also be calculated and continuity/frequency testing functions are also included.

The Megger DCM340 has 35mm diameter jaws, making it suitable for smaller to medium-sized conductors. It also comes with a selection of advanced features such as digital bargraph, peak, min/max and data hold functions and is compliant with IEC61010 CAT III 600V.

This digital clamp meter is perfectly suitable for use in heavy-duty industrial applications thanks to 1.2m drop protection.

Megger DCM340 Digital Clamp Meter Key Features

• Measurements of AC and DC current to 600A
• Measurements of AC/DC voltage to 600V
• Test resistance to 400Ω
• Continuity testing
• Frequency testing
• 35mm jaws
• Digital bargraph
• Peak hold
• MAX/MIN mode
• Data hold function

What's Included?

• Megger DCM340 Digital Clamp Meter
• Batteries
• Pouch
• Test Leads
