Megger DET4TCR2 Rechargeable Earth Tester + Pro ET Kit

Megger DET4TCR2 Rechargeable Earth Tester + Pro ET Kit Details

This special kit version of Megger's DET4TCR2 includes a bumper pack of accessories designed to further expand the capabilities of this earth tester.

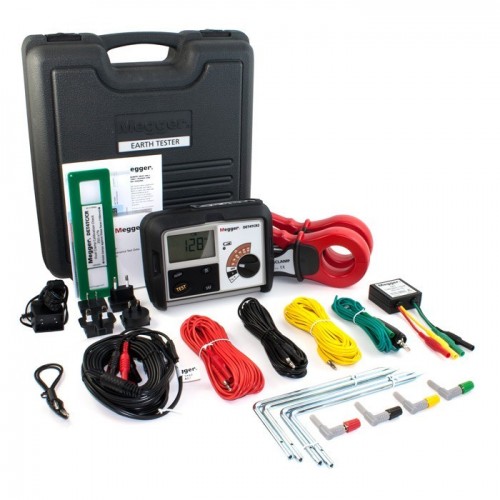

What's In the Kit?

• Megger DET4TCR2 Rechargeable Earth Tester
• Hard Carrying Case
• Stake and Wire Kit (15m, 10m, 10m and 3m Reels)
• ICLAMP (for ART Testing)
• VCLAMP (for Stakeless Testing)
• Field Calibration Check for Instrument/Clamps
• Right Angle Terminal Adaptors (to connect bare wires to terminals)
• External AC/DC Charger

In addition to these items, the kit version of this product also ships with a separate Professional Ground Testing Kit including:

• 2 x 30m Reels
• 2 x 50m Reels
• 4 x Auger Stakes
• Tape Measure
• Hard Carrying Case

About the Megger DET4TCR2 Earth Tester

Powerful, portable and always reliable, Megger's DET4TCR2 is the tester you need for testing ground current, earth resistance and soil resistivity in a wide variety of applications.

IP54 rated, the DET4TCR2 is fully suitable for use in outdoor conditions. With variable frequency 2 pole, 3 pole, 4 pole, attached rod technique (ART), stakless, leakage current and ground noise voltage measurements available, this tester is a comprehensive solution for ground system testing.

This tester works seamlessly with Megger's ICLAMP and VCLAMP accessories (both included in this kit). With the ICLAMP, it's possible to use the DET4TCR2 to perform fall-of-potential measurements on electodes without disconnection and test leakage current to 1mA. The VCLAMP is made for stakless measurements and is an excellent solution for testing in areas where driving stakes into the ground just isn't possible.

The DET4TCR2 is the upgraded version of the standard DET4TC; the only difference between the two units is that this one comes with internal rechargeable batteries, whereas the standard model uses standard non-rechargeable batteries.

Key Features

• Earth resistance measurement range from 0.01 to 200kΩ
• Ground noise voltage measurement range from 1V to 100V
• Ground current range from 1mA to 20A
• Accurate measurements even in electrically noisy environments with 40V peak to peak noise voltage rejection
• Selectable test frequencies to manually alter the effects of noise
• Powered by rechargeable batteries
• Suitable for 2 pole, 3 pole, 4 pole, attached rod technique (ART), stakless, leakage current and ground noise voltage measurements
• IP54 rated for use in outdoor conditions
• Simple one button operation
• Backlit display
• CAT IV 100V safety rating
• Selectable 25V or 50V output for compliance with IEC 61557-5
