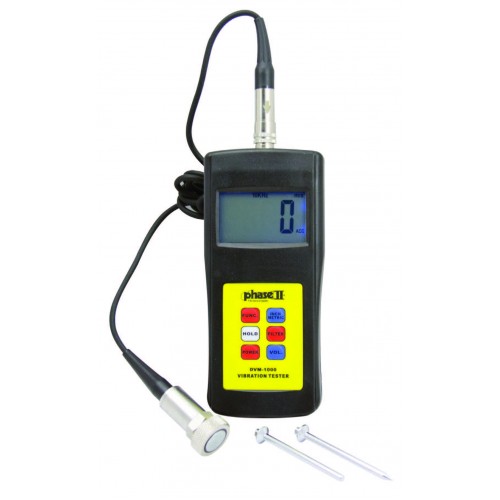

Phase II DVM-1000 Digital Vibration Tester

The Phase II DVM1000 Digital Vibration Tester measures Velocity, Acceleration, Displacement, and RPM. Full frequency ranges are utilized for broad detection abilities. Rich with features, the Phase II DVM-1000 does not pull any punches, offering statistics, inch/metric conversion, hold function, and more.

Product Features:

• Acceleration peak value: 0.1 m/s to 200 m/s or 0.3 f/m/s to 656 ft/m/s; Frequency range: 10 Hz to 1 KHz or 10 Hz to 10 KHz
• Velocity (RMS): 0.1 (mm/s) to 400 (mm/s) or 0.004 in./s to 16.0 in./s; Frequency range: 10 Hz to 1 KHz
• Displacement peak-to-peak: 0.001 (mm) to 2.0 (mm) or 0.04 mil to 80 mil; Frequency range: 10 Hz to 500 Hz
• RPM (revolution): 5 r/min to 100,000 r/min
• Frequency: 0.1 to 10 KHz
• Accuracy: < 5%
• Operating temperature: 32 °F to 113 °F
• Power supply: Four AAA batteries
• Quick and accurate analysis for checking balance and alignment of rotating objects
• Large LCD display
• Statistics: Mean, Max, MIN, No. of Measurements and Std deviation
• Inch/Metric conversions with push of button
• Max hold function
• Regulated output: AC output 2.0V peak full scale

In The Box

• 1 - Powerful Magnet
• 1 - Accelerometer
• 1 - Stinger Probe (Cone)
• 1 - Stinger Probe (Ball)
• 1 - Carry Case
• 1 - User Manual
