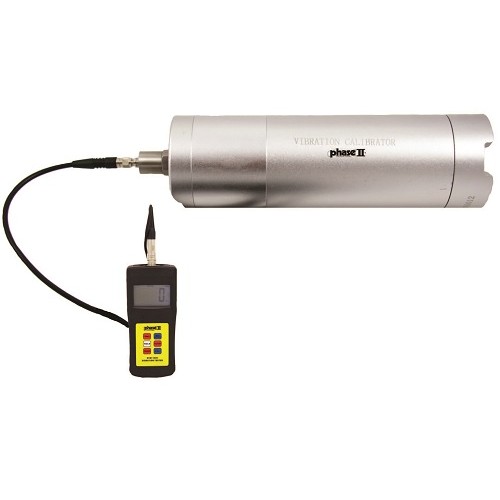

Phase II DVM-1600 Vibration Calibrator

The Phase II DVM1600 Vibration Calibrator is an integrated shaker type calibrator system that is designed to test accelerometers, vibration monitoring equipment and recording systems. The DVM-1600 vibration calibrator provides a known and controlled RMS vibration for verification of accelerometers weighing up to 150 g.

Product Features:

• Operating frequency: 159.2 Hz +/-0.5%
• Acceleration output: 10mm/s RMS
• Velocity output: 10um (RMS) +/-4%
• Displacement output: 10um (RMS) +/-4%
• Transverse output: < 5%
• Distortion: < 3%
• Max load: 150g
• Operating temperature: 15 °F to 105 °F
• Ramp up time: < 3 seconds
• Power supply: Internal battery 1V to 9V 6F22
• Integrated shaker type system
• Designed to test accelerometers, vibration monitoring equipment and recording systems
• Provides known and controlled RMS vibration for verification of accelerometers weighing up to 150g

In The Box

• 1 - User Manual
