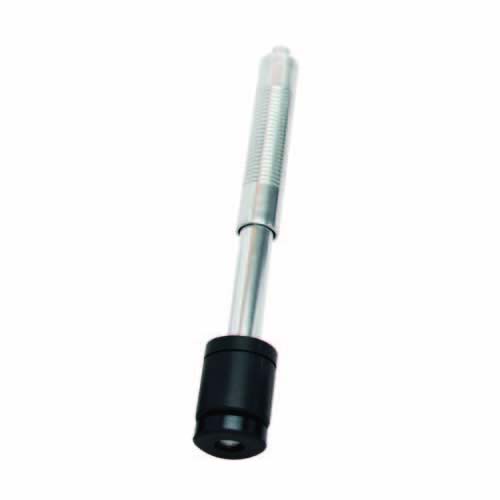

Phase II PHT1800-130 Impact Device C for Portable Hardness Testers

Phase II Plus PHT1800-130 C Impact Device

• Reduced impact energy impact device
• Thin wall or impact sensitive components
• Applies a small superficial indentation
• For measuring the hardness of surface hardened components
• Approximately ¼ of the D Type 2 ft-lb.

C Impact Device

A reduced impact energy impact device(approximately ¼ of the D Type 2 ft-lb.) for measuring the hardness of surface hardened components, coatings, thin wall or impact sensitive components. Applies a small superficial indentation.

Product Features:

Reduced impact energy impact device

For measuring hardness of surface hardened components, coatings, thin wall, or impact sensitive components

Applies small, superficial indentation

Impact energy: 3Nmm

Mass of the impact body: 3.0g

Test tip hardness: 1600 HV

Test tip diameter: 3mm

Test tip material: Tungsten carbide

Impact device diameter: 20mm

Impact device length: 141mm

Impact device weight: 75g

Maximum hardness of sample: 1000 HV

Surface roughness class ISO: N5

Surface maximum roughness depth Rt: 2.5um

Surface average roughness Ra: 0.4um

Minimum weight of compact shape sample: 1.5kg

Minimum weight of solid support sample: 0.5kg

Minimum weight of sample coupled on plate: 0. 02kg

Minimum thickness of coupled sample: 1mm

Minimum thickness of layers: 0. 2mm

Indentation of test tip with 300 HV: Diameter = 0.38mm/Depth = 12um

Indentation of test tip with 600 HV: Diameter = 0.32mm/Depth = 8um

Indentation of test tip with 800 HV: Diameter = 0.30mm/Depth = 7um

For use with Portable Hardness Testers
