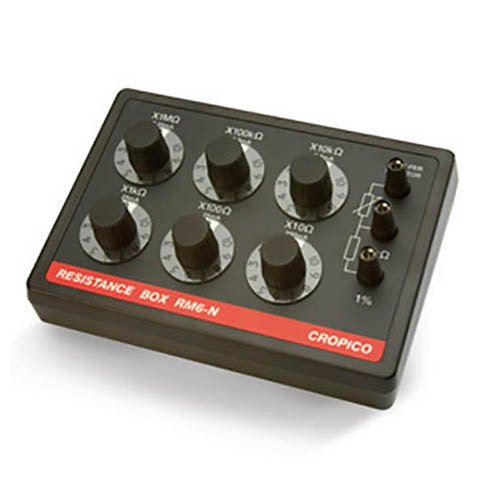

Seaward RM6-N2 6 Decade Resistance Box

The Seaward RM6-N2 6 Decade Resistance Box, 1 Ohms to 100 kOhms is a space saving 6 decade resistance box, covering the range 1 Ohms to 100 kOhms. An additional 1 kilo Ohm resistor is available at the terminals enabling the user to make a simple divider. The RM6-N2 decade resistance box incorporates 0.6 watt resistors with a specified accuracy of ±1%, as well as a range of 10 Ohms to 1 MOhm. Designed for durability and ease of maintenance, the case is high impact polystyrene and the size is only 190 x 140 x 70 mm. The RM6N2 constitutes an ideal tool for use in all electrical and electronic laboratories or workshop environments offering a wide range of values with minimal cost.

Product Features:

• 6 decades
• Range: 1 Ohm to 100 kOhms
• Accuracy 1%
• Terminals: Insulated will accept 4 mm banana plugs and spade tags
• Maximum continuous working voltage: 70 V DC/33 V RMS
• Resistors: Metal film 0.4 W at 70°C
• Temperature-Co-efficient: ±100 ppm./°C
• Residual Resistance: <0.1 Ohm

In The Box

• 1 - User Manual
