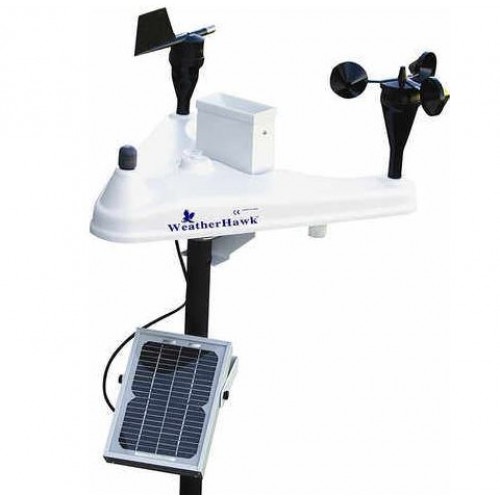

WeatherHawk 89498 ET Weather Station, Wired

WeatherHawk ET Weather Station, Wired

Direct connect, serial cable included.

Designed for easy installation and use! This industrial grade, fully assembled weather station measures wind speed and direction, air temperature, relative humidity, barometric pressure, solar radiation, rainfall, and ETo (evapotranspiration). The included WeatherHawk XP/X software allows for sophisticated data management and operates on PC-XP or Macintosh OS-X. Weather station, solar panel kit (for use in lieu of a DC power supply), and software included with both models.

Sensors – Wind Speed: Sensor, Cup anemometer; Starting Threshold, 0.78 m s-1 (1.75 mph). Wind Direction: Sensor, Vane; Range, 360° mechanical, 352° electrical; Linearity, 1%; Sensitivity, 1 m s-1 (2.2 mph). Air Temperature: Sensor, Thermistor; Operating Range, -40°F to 122°F (-40°C to 50°C) 0 to 100% RH; Accuracy, ±0.9°F (±0.5°C); Interchangeability, ±0.36°F (±0.2°C). Relative Humidity: Sensor, Precision temperature corrected bulk polymer; Accuracy, ±5% for 90% to 100% RH and ±3% for 10% to 95% RH. Barometric Pressure: Sensor, Piezoresistive transducer; Range, 15 to 115 kPa (4.43 to 33.96 inches of Mercury); Accuracy, < ±1.5% of full scale reading ±1.5 kPa (0° to 85°C) ±0.443 Hg. Solar Radiation: Sensor, Silicon pyranometer; Spectral Range, 300 to 1,100 nm; Accuracy, ±2.5%; Output, 0.25 mV per W m-2; Operational Range, 0 to 2,000 W m-2; Temperature Range, -40°F to 130°F (-40°C to 55°C). Rain Gauge: Sensor, Tipping bucket; Orifice, 7.75 in2 (50 cm2); Resolution, 0.04” (1 mm). Weather Station – Temperature Range: -40°F to 122°F (-40°C to 50°C). Storage: 128 kbytes of nonvolatile Flash RAM (32,000 data points). Battery: On-board, 0.8 Ahr lead-acid. Solar Panel: 5 watt.
