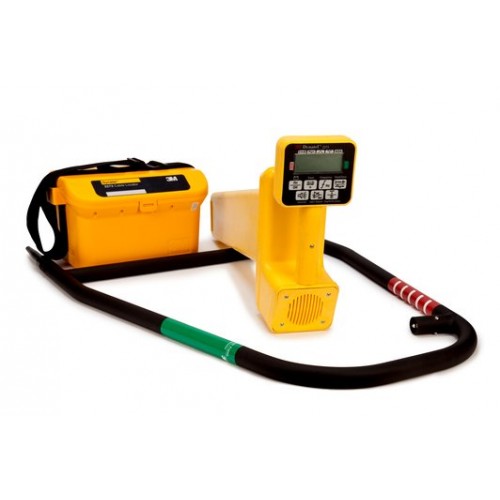

3M 2273-U3P3 Dynatel Pipe Cable Fault Locator

Technical Details

Operating Temperature Range (Celsius) -20 °C to 50 °C

Solution for        Access Network: FTTH/FTTB/CATV

Access Network: xDSL

Long-haul/Metro Loop Network: Outdoor

Wireless Network: Backhaul

2200RB Rechargeable Battery    Not Included

Marker Finding Capability           No

Number of Frequencies 4

Cable/Pipe Locate           Yes

Fault Finding Capability Yes

RoHS 2011/65/EU Compliant      Undetermined

Brand   Dynatel™

Carrying Bag Included    No

Transmitter Output        3 W

Product Type     Utility Locator

EMS Caution Tape Finding Capability      No

Family   2273 Series

Direct Connect Cable     Large Clips

Coupler Size       3.00 Inch

RoHS EU Comments       Contact 3M for information

*Important RoHS information

Storage Temperature    -40 to 70 Degree Celsius

Details

Four active trace frequencies which can be used individually or simultaneously to compensate for varying field conditions. The receiver incorporates passive power and auxiliary frequencies that do not require the use of the transmitter.

Graphic display to distinguish between targeted cable and other cables in congested area.

Four modes of operation - dual peak, dual null, differential and special peak - for accurate locates, even in the most challenging field conditions

Precisely locates sheath or ground faults on both short and long cable sections.

The 3M™ Dynatel™ Locator 2250/2273 Series is designed to find the path and estimated depth of buried cables and pipes.

Features include:

• Four active frequencies

• Passive frequencies for power, cathodic protection systems and CATV
• Auxiliary frequencies for long distance locating from remote transmitters
• Direct readout of active duct probe (sonde)
• Cable/pair identification
• Receivers incorporate an “expander” function to make peaks and nulls more pronounced
• As with other locator models, the 3M™ Dynatel™ Locator 2273 performs all functions of the 2250 locator plus the ability to find underground faults.
