AEMC 1026 Digital Megohmmeter 1000V

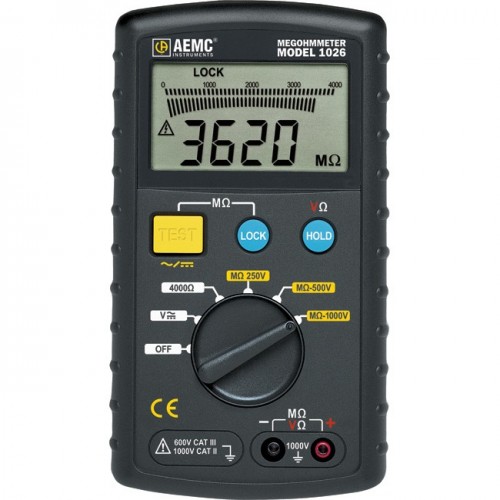

Megohmmeter Model 1026 (Digital 250V, 500V, 1000V, 4000W, V) Model 1026

The Megohmmeter Model 1026 is a compact, lightweight, battery-operated , hand-held meter. It provides four functional tests. It is a megohmmeter, ADC voltmeter, AC voltmeter, ohmmeter and a continuity tester. The Model 1026 tests at 250V, 500V and 1000V and measures insulation resistance from 1kΩ to 4000MΩ.The Model 1026 also features a continuity test range with audible beeper for resistances under 40Ω, and a 600VAC range for safety voltage check. In addition, the Model 1026 has an ohmmeter to measure from 0.1Ω to 4000Ω.The Model 1026 is supplied with test leads, clips, batteries, soft carrying case and a user manual.

The AmpFlex ™ is a flexible AC current probe composed of a flexible sensor and an electronic module. The flexible sensor permits measurements on conductors where standard clamp-on probes cannot be used. In particular, it can be installed in tight spaces, around cable bundles, around wide or large bus bars, or even wrapped around irregular shapes. The Shape Memory feature enables the user to pre-shape the sensor before inserting it between or around conductors. This feature facilitates positioning the sensor around the conductor, enhances user safety, and alleviates the drooping effect associated with other flexible sensors.

The AmpFlex ™ is lightweight and does not use magnetic cores like standard transformers. The transformation principle is based on an air core. It presents virtually no load to the system under test, has a low phase shift and excellent frequency response, and cannot be damaged by current over- loads. The sensor assembly is water- proof and insulated for 1000V working voltage. The AmpFlex ™ meets EN 61010 and is CE marked.

The AmpFlex ™ has a mV output proportional to the current measured for direct readings on DMMs, loggers, oscilloscopes and power or harmonic meters. The length of the flexible sensor can be selected from 24" (450mm) to 60" (1520mm). Longer lengths are available.

Features

• Models ranging from 30Arms to 30,000Arms
• Accuracy 1% of Reading
• TRMS measurements when connected to a TRMS instrument
• No core saturation or damage if overloaded
• Overrange LED for measurement circuitry
• EN 61010, 1000V Cat. III, CE Mark
• Waterproof sensor
• 9V battery, provides typical 150 hr continuous operation
• Shape Memory for custom pre-shaping of sensor before use (no drooping)
• Very high frequency response
• Low phase shift for power measurements
• Insensitive to DC, measures only AC component on DC + AC signals
• Excellent linearity
• Lightweight

Applications

• Measuring wide bus bars
• Measuring crowded circuit breaker panels
• Measuring around large cable bundles
• Measuring in any traditional application
• Measuring around irregular shapes
