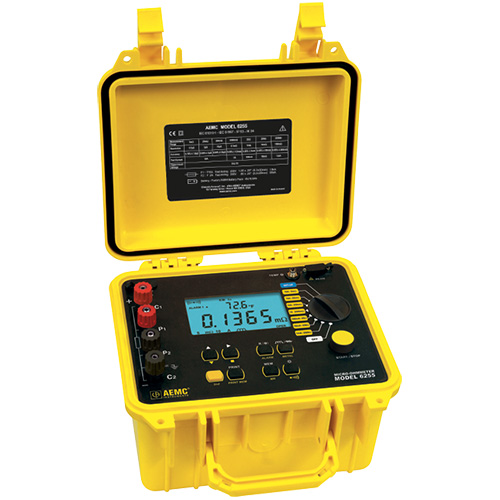

AEMC 6255 Micro-Ohmmeter 10A, Instantaneous, Continuous, Multiple Test, Manual/Auto Temperature Compensation (2129.84)

The AEMC 2129.84 (6255) 10A Micro-Ohmmete is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method, the Model 6255 is the most accurate Micro-Ohmmeter available, with results within 0.05%.

The Model 6255 is uniquely designed to conduct tests on both resistive and inductive material, with operator selection directly from the front panel. Three test modes are available; resistive (instantaneous test), inductive (continuous test), and auto (repetitive test). Up to 1500 measurements can be stored and printed directly to a printer from a PC. The DataView Software included allows you to configure the instrument, store data and print reports.

Product Features:

• Measure from 1 microohm (0.1 microohm resolution) to 2500.0 Ohm
• Test current selection of 1mA, 10mA, 100mA, 1A and 10A
• Selectable metal types
• Automatic and manual temperature correction
• Two programmable alarm set points
• Stores up to 1500 test results
• Selectable inductive or resistive test modes
• Automatic multiple test mode (multiple tests without pressing the test button)
• Large multi-line electroluminescent display
• Local or remote test setup and control
• Internal rechargeable batteries conduct up to 5000 - 10A tests
• Rugged, double insulated waterproof case
