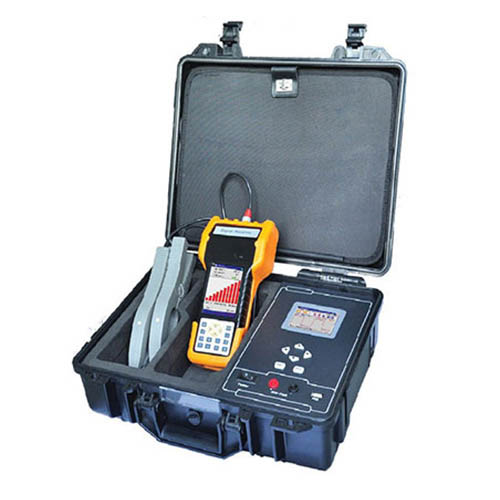

Besantek BST-GFL31 Ground Fault Locator Kit

The BESANTEK BSTGFL31 Ground Fault Locator Kit is designed to deal with a current leakage DC system of high resistance below 1 MOhm. It pinpoints faulty grounding where electrical lines have breakage and current is lost to the Ground. This model provides solutions for troubleshooting and preventative maintenance.

Product Features:

• Output Voltage: 24V, 48V, 110V, 220V, 500V, 1000V
• Output Frequency: 10Hz (1Hz, 50Hz, 60Hz & 325Hz as option)
• Signal-generator with adjustable output voltage (24V~1000V) and output frequency (1~325 Hz) for different DC systems
• Frequency spectrum analysis can test ambient frequencies
• Locate ground fault in different DC systems
• Strong anti-interference when system is working online
• Innovative dual range current detector with direction sensitivity
• Multi-way for location: current direction, signal strength and phase angle
• Pinpoint current leakage fault with grounding resistance lower than 1MOhm.
• Dual-clamp for signal receiver, each clamp has two sizes of opening jaw for different conductors
• One pair of clamps working together, effective cancel capacitive interference from DC system
• Precise current direction (positive or reversed) indication for leaking current
• Adjustable output frequency on signal receiver effectively avoids interference from DC system
• Signal receiver can set reference in different points for signal comparison, very fast for fault orientation
• Digital signal processing technology for detecting grounding resistance and capacitive resistance
• Built-in band pass filter
• No disconnection of the electrical installation, ground fault location is carried out during operation
• Frequency spectrum analysis can test ambient frequencies, helps select the right frequency for the right DC system.
• Signal-generator with adjustable output voltage (24V~1000V) and output frequency (1~325 Hz) for different DC systems.
• Multiple indicators of ground fault: Sensitive current direction, phase angle, comparison of signal strength

In the Box

• 1 - Functional Signal Receiver
• 1 - Dual-Clamp with 2 Conductor Sizes
• 1 - User Manual
