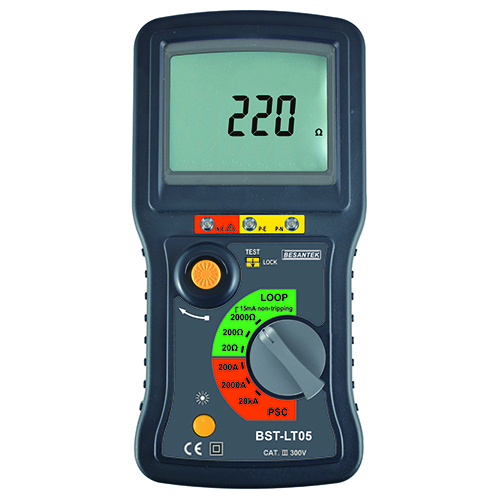

Besantek BST-LT05 Digital Loop and PSC Tester

The BESANTEK BSTLT05 Digital Loop and PSC Tester is a handheld microprocessor controlled tester, which includes 3 loop impedance measuring ranges capable of measurements from any point in the installation for comprehensive testing of distribution systems. This model can perform direct measurement of loop impedance without bypassing the wires. The BST-LT05 model offers a built-in voltmeter, ground tester, and loop/PSC tester.

Product Features:

• Loop Impedance Range: 20Ohm - 2000Ohm
• Voltage Display Measurement Range: 150~260 V
• Prospective Short-Circuit Current: 20kA - 200A
• 15mA loop measurement will not trip ELCBs
• Direct measurement of loop impedance without bypassing the wires
• Wiring check function
• Over temperature protection
• Over voltage protection
• Built-in voltmeter, ground tester, and loop/PSC tester
• Batteries not required
• 2000 Count LCD Display
• Backlight function

In The Box

• 1 - Set of Test Leads
• 1 - Hand Strap
• 1 - Carrying Case
• 1 - User Manual
