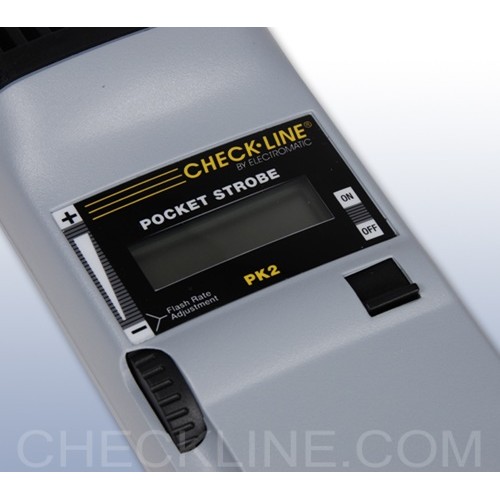

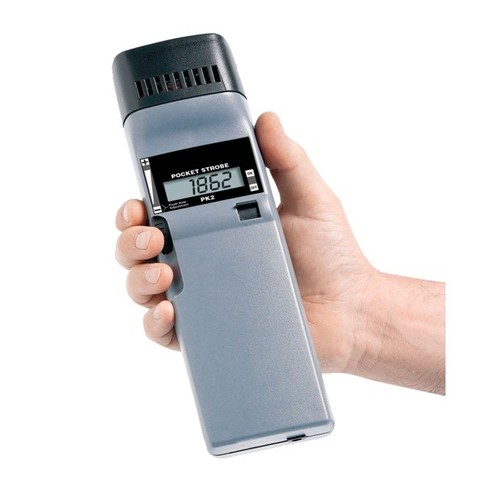

Checkline PK2X [PK2-X] Pocket Stroboscope
- ManufacturerCheckline
- Product Code: PK2X
- Availability: Pre-Order
-
Rp0
The PK2X portable, digital stroboscope delivers superior performance and incorporates impressive new features, while remaining among the world's smallest industrial stroboscopes. Performance enhancing features include a flash brightness of 800 Lux (300% brighter than PK1), a flash rate of up to 12,500 flashes per minute and a longer-lasting flash tube. The PK2X has a Lithium Ion battery that provides a full 2 hours of continuous operating time regardless of flash rate.
The PK2X is CE-certified, so it meets the industry's toughest safety and performance standards. It provides highly accurate speed control with drift-free operation, a resolution of ñ1 RPM over the entire range, and external triggering capability. Small enough to be operated with one hand, the PK2X performs comparably to larger and heavier "pistol grip" type models. It fits easily in the pocket or can be carried in an optional belt holster.
The PK2X is ideal for non-contact RPM measurement, as well as for inspecting moving parts by "freezing" or "slowing down" the action.
Complete Kit:
Includes Stroboscope, Universal AC-Adapter/Charger (with plug adapters provided for North America, Europe, UK & AU), external input/output jack, Traceable Calibration Certificate and instruction manual, all supplied in a hard shell carrying case.
| Flash Range: | 30 - 12,500 FPM |
| Flash Brightness: | 1200 Lux (8"/20cm distance @ 4500 fpm) |
| Accuracy | ± 0.01% over entire range + 1 LSD ± 0.04 Hz |
| Resolution: | ± 1 FPM over entire range |
| Display: | 5-digit LCD |
| Display Update: | 0.5 seconds |
| Flash Energy: | 170 mJ |
| Flash Duration: | < 9 µs |
| Flash Tube Life: | 200 million flashes (at 6,000 fpm) |
| Flash Color Temp.: | 6,000K - 6500K |
| External Trigger: | 5 volt, DTL/TTL compatible 1/8" jack |
| Optional* Trigger Signal Output: | 5 volt, DTL/TTL compatible 1/8" jack * on PK2X-OT Model Only |
| Operating Time: | Battery, 2 hours AC-Power, continuous |
| Battery Type: | Lithium Ion (Li-Ion) |
| Battery Charger: | AC Power Required, 100-240 VAC, 50/60 Hz DC-Output, 9 VDC @ 2000 mA max Charging Time, 4-5 hours |
| Overcharge Protection: | Yes |
| CE Certification: | Yes |
| Weight: | 0.9 lbs (415 grams) including battery |
| Housing Material: | High Impact ABS Plastic |
| Reflector Material: | Aluminum |
| Tripod Mount: | 1/4-20, female insert |
| Operating Temp: | 32 to 104° F (0 to 40° C) |
| Dimensions: | 9-3/4" x 2-3/4" x 1-3/4" 240 x 65 x 40 mm |
| Warranty: | One Year |
