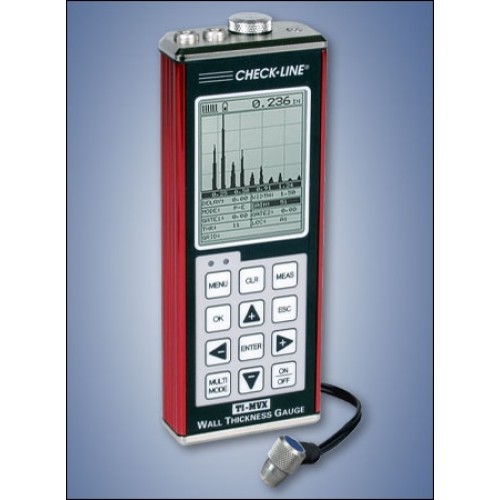

CheckLine TI-MVX Graphical A & B Scanning Ultrasonic Wall Thickness Gauge

  • ManufacturerCheckline
  • Product Code: TI-MVX
  • Availability: Pre-Order

  • Rp0

0 reviews
Write a review
The TI-MVX offers a series of advanced features including A-Scan, B-Scan as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values and A-scan captures. The TI-MVX features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use. It is supplied as a complete kit with all accessories in carrying case with FREE software, transfer cable and NIST-Traceable Calibration Certificate.

  • The MVX is equipped with multiple viewing options to provide users with a complete set of inspection tools: (RF waveform, +/- Rectified waveform, Time based B-Scan, and Large Digits).
  • The A-Scan rectified mode is commonly used for detecting flaws/pits in pulse-echo mode and measuring through paint and coatings in echo-echo mode.
  • The time-based B-Scan feature of the MVX displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
  • Built in hardware AGC gain control for through paint measurements in multi mode operation.
  • The MVX has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
  • Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
  • Use the find feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
  • MVX also comes complete with our Windows® PC software for transferring data to and from a PC.
  • Includes Flaw Inspection - Prove Up Mode, (special probe required)
  • The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material, and display the minimum measurement scanned.
  • CE Certified
  • Includes NIST Calibration Certificate
The TI-MVX is supplied as a complete kit with
note: sensor probe not included with this model
  • Gauge
  • 4 oz. bottle of coupling fluid
  • 2 AA batteries
  • NIST Calibration Certificate
  • Data transfer software
  • Serial output cable
  • Operating Instruction Manual
  • Foam-fitted carrying case
