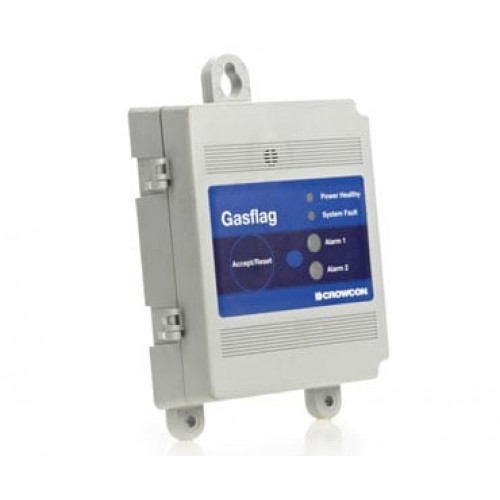

Crowcon C01818 Gasflag 1-Channel Gas Detector

Gasflag 1-Channel Gas Detector

Quick-response gas monitoring device ideal for workplace safety applications

The Gasflag 1-Channel Gas Detector is a stationary, permanently fixed or wall-mounted occupational health and safety (OHS) gas monitoring device equipped with a 4 to 20-mA input for the connection of one gas sensor (sensor not included). The Gasflag responds to a gas flare in less than a second, issuing a dual audible and visual alarm to alert nearby personnel.

• Quick response
• Easy to install and operate
• IP20 ingress protection rating
• Input: 4... 20-mA, single channel
• Operating voltage: 13... 28V DC
• Audible sound and visual LED alarm indicators
• Gas sensor sold separately - see accessories for details
• Outputs: Single-pole change-over for use with DC signals, relay contacts 1 A at 30V DC

1. Operating temperature     -20... 70 ° C / -4... 158 ° F
2. Operating humidity             0... 99 % RH (relative humidity)
3. Operating voltage             13... 28V DC
4. Response time                     < 1 second
5. Housing material                     ABS plastic
6. Dimensions                             Approx. 210 x 145 x 46 mm / 8.3 x 5.7 x 1.8"
7. Weight                                     Approx. 500 g / 1.2 lbs
8. Ingress protection             IP20 rating
9. Sensor input                             4... 20-mA
10. Outputs                                     Single-pole change-over for use with DC signals
11.                                                     Relay contacts 1 A at 30 V DC
12. Display                                     LED
13. Channel(s)                             Single
