DAKOTA FX81-DL BENCHTOP FLAW DETECTOR FORMELLY DFX-8+

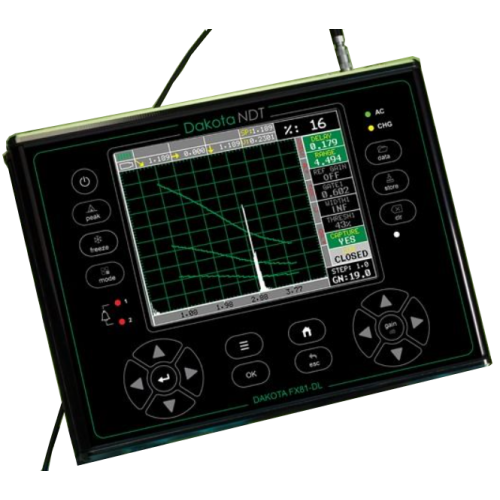

Dakota FX81-DL Benchtop Flaw Detector (DFX-8+)

The Dakota FX81-DL Flaw Detector is designed for use in the laboratory these gauges are the tool you need for all your flaw detecting needs.

The time corrected gain (TCG) feature automatically compensates for sound attenuation through a material, further increasing the performance of the gauge.

Within the grid batching of the Dakota FX81-DL Flaw Detector the user has the capability to enter 'OBSTRUCT' on to the grid for easy identification of inaccessible locations to measure.

The Dakota FX81-DL Ultrasonic Flaw Detector has a 4Gb internal memory and an external memory card slot which allows up to 64Gb with full data logging via RS232 data output to DakMaster™ data management software.

Features:

• Blanview sunlight readable QVGA TFT colour display
• Sizing Toolkits: DAC, AWS, TCG, DGS
• Pulse Repetition Frequency: 8 to 333 Hz, adjustable
• Screen Refresh Rate: 60Hz
• Detection: Z-Cross, Flank & Peak
• Automatic: probe zero, probe recognition, and temperature compensation
• Measurement: Variety of modes to address a number of applications
• Large data storage: 4Gb internal & up to 64Gb external memory card slot
• Multiple formats: Alpha numeric grid and sequential with auto identifier
• 18-Hour Continuous Power: We engineered the Dakota FX81-DL Flaw Detector to handle the most demanding double shifts on a single charge
• Download to DakMaster™ data management software
