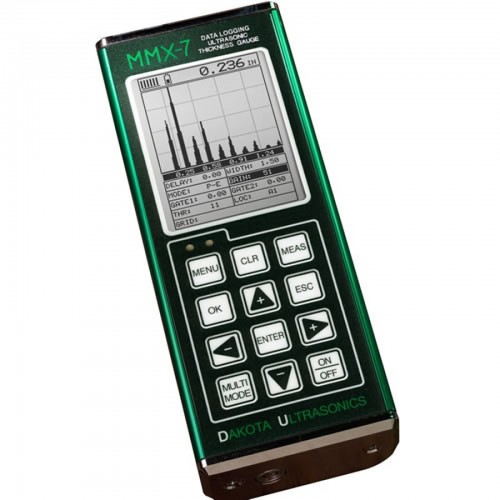

Dakota MMX-7 Ultrasonic Thickness Gauge with T-102-2700 PROBE, Z-160-0001

The new CHECK-LINE MMX-7 is a full featured ultrasonic thickness gauge offering an oversized display as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values.

The MMX-7 features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use.

Features

• The time-based B-Scan feature displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
• Built in hardware AGC gain control for through paint measurements in multi mode operation.
• The MMX-7 has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
• CE Certified
• Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
• The MMX-7 also comes complete with our Windows® PC software for transferring data to and from a PC.
• The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material, and display the minimum measurement scanned.
• Use the AUTOFIND feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
• Includes NIST-Traceable Calibration Certificate
• 2 Year Warranty
