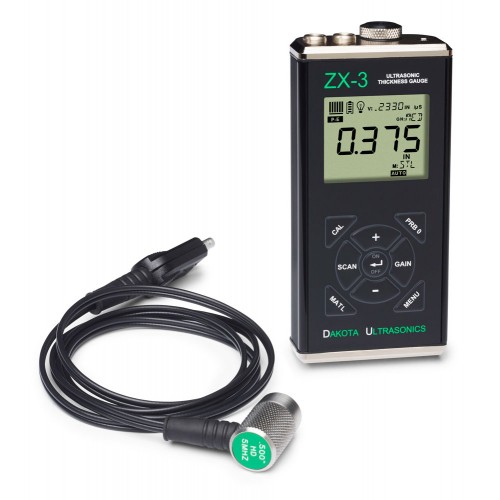

DAKOTA ZX-3 ULTRASONIC WALL THICKNESS GAUGE

The Dakota ZX-3 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! It can measure thickness up to 36 inches (915 mm), depending upon the material and transducer.

The ZX-3 combines the best features of the ZX-2 allowing the operator to select from 8 preset materials as well as program 2 custom material velocities, plus allows free adjustment of the velocity as desired and allows the end-user to calibrate to a sample of known thickness where the velocity is automatically calculated. Additionally, to optimize linearity over a wide range, the user can perform a 2 point calibration to two samples of known thickness. The optimal velocity is automatically calculated to provide the highest accuracy and linearity between the low and high calibration points.

The TI-25MX can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The ZX-3 probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free operation under the toughest field conditions.

Features

• Includes NIST Traceable Calibration Certificate
• Resolution of 0.001 inch (0.01 mm)
• Switch-selected units for inches or mm
• User-selected Manual or Auto Zero of Transducer
• User can select from 8 preset materials as well as program 2 custom material velocities
• Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
• 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
• Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
• Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
• Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
• The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
• to provide trouble-free operation under the toughest field conditions
• For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
• High visibility LCD Display is readable in all lighting conditions and temps as low as 22 °F (-30 °C)
• LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units
• Operates on two (2) AA Batteries - 45 hours continuous operation
• Selectable Backlight ON/OFF/AUTO
• 5 Year Warranty, CE-Certified and Made in USA
