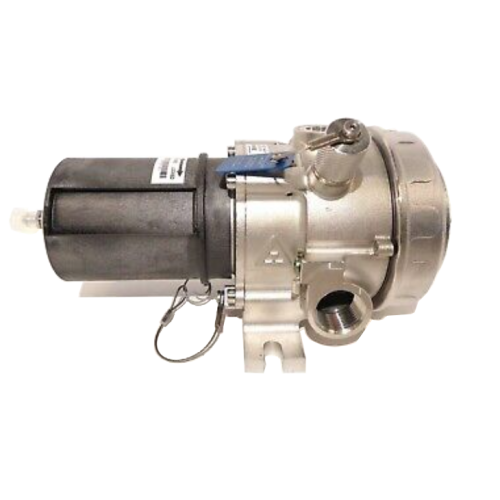

Det-Tronics PIRECLA1B1W2 Methane Gas Detector 007168-005

Det-Tronics PIRECLA1B1W2 Methane Gas Detector.part No.007168-005

PointWatch Eclipse PIRECL Hydrocarbon Detector is our most rugged stainless steel, point infrared gas detector providing detection of methane, propane, butane and ethylene, among other flammable hydrocarbon gases in the LFL range. Standard signal outputs include isolated 4-20 mA, HART communication protocol, and RS-485 serial communication supporting Modbus. An Eagle Quantum Premier (EQP) version, and optional 2-alarm or 1-fault relay package are also available. A tri-color LED provides visual display of operating status. The weather baffle provides excellent optics protection with an easy twist-lock removal.

Specifications

Model: PIRECLA1B1W2
Threads: 3/4 NPT
Output: 4-20 mA
Relays: Yes
Weather Protection: w/ hydrophobic

Additional Features

• Compliance to ANSI/ISA-12.13.01-2000 performance standard
• Performance certified to ATEX EN60079-29-1, FM 6310/6320, and CSA 22.2 #152
• Models available with SIL 2 certification
• Internal wiring compartment saves money and time spent on installation
• Heated optics
• Non-intrusive calibration
• Immune to poisoning
• Handheld communicator capability
• FDT/DTM capable
• Ex d, e, ib protection designs
• IECEx, FM, CSA, A TEX, CE hazardous location certifications
• DNV and MED offshore certifications
• Conforms to global life safety requirements for combustible gas when connected through:
  • Internal relays, EQP Controller, FlexVu UD10, UD10-DCU,
  • Infiniti U9500, R8471H Controller, EQ3710 Analog Input Module (AIM)
• Remote calibration capability using UD10 or model PIRTB junction box
• LON configurations are certified as NFPA 72 Class X devices
