Druck DPI 880 [DPI880] Multifunction Calibrator for Temperature, Pressure, mA, mV, V, ohms, and frequency

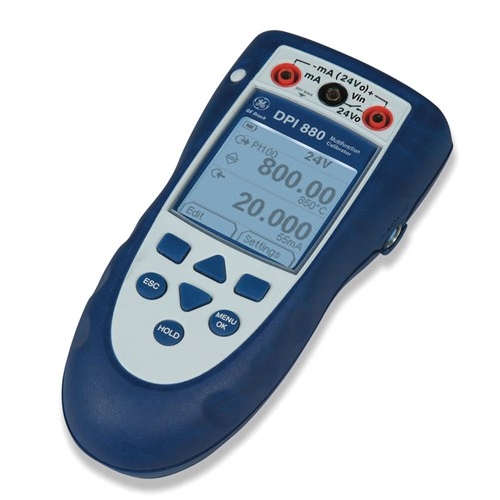

DPI 880 - Multifunction Calibrator

GE-Druck-DPI-880-tn

GE's Druck DPI 880 is an ultra-compact and simple-to-use multifunction calibrator for testing, configuring and calibrating virtually all process parameters. It is 35% smaller than competitive models and it’s interactive display means a more simple, easier-to-understand interface.

Users no longer need to carry additional recording tools using the data logging capability, can obtain high precision data and address any issue in as much time as it takes to press a button, saving valuable operating time.

Applications

Test and maintenance

Transmitter calibration

Loop set-up and diagnostics

Switch, trip and alarm verification

The DPI 880 Multi-function Calibrator is an ultra compact and simple to use tool for testing, configuring and calibrating virtually all process parameters. It measures, sources and simulates mA, mV, V, RTDs, thermocouples, ohms, frequency, pulses and pressure, captures switch values and provides 24 V loop power.
