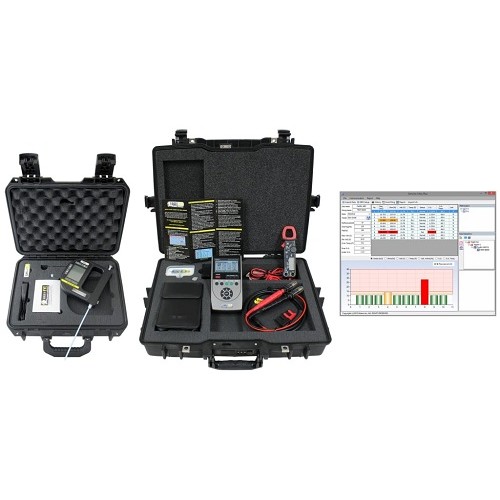

Eagle Eye ULTRA-MAX PRO KIT Ultra Max Plus Battery Testing Kit

Complete IEEE/NERC Testing Kits

Ultra-Series Kits have been specifically designed to provide a complete portable battery testing solution to meet IEEE/ NERC requirements for battery testing. These kits include your choice of IBEX-Series Internal Ohmic Battery Tester, your choice of SG-Series Specific Gravity Meter and our Exmons ULTRA+ Software package to manage all data in one battery management system.

Eagle Eye’s ULTRASeries Kits are completely customizable to meet your specific battery testing requirements. Find the Ultra Kit that meets your specific application, testing requirement, budget, data storage, software preference

and reporting capability. ULTRA-Series kits are tailored to your company, and come complete with the most comprehensive battery diagnostic software available in the industry today (EXMONS ULTRA+) which allows the user to trend their batteries, create battery reports, view graphs, export information to Excel and much more!

IBEX-PRO, SG-ULTRA MAX and ULTRA+ Soft

IBEX-SERIES Features

• Meets IEEE/NERC Requirements
• Measures & Stores Results in 3 seconds
• Online Battery Tester
• Precise & Repeatable
• Extremely User-Friendly
• Stores up to 4,800 Results (IBEX-ULTRA)
• Compact & Portable
• SG-SERIES Features
• Meets IEEE/NERC Requirements
• Measures & Stores Results in 3 seconds
• Online Battery Tester
• 99.999% Accurate
• User-Friendly

The IBEX-Ultra Battery Testing Kit includes:

• IBEX-Ultra Body
• Li-Ion Battery Inside Body
• Soft Poly-Vinyl Bag
• Shunt (50mV/50A, 1mΩ, 1.0 Class)
• Spare 4-Pin Test Lead Tips
• Spare Li-ion Battery
• IR Printing Capability
• IR Thermal Printer
• Paper Rolls for IR Printer
• 220V AC Standard Charger for IR Printer
• 4-Pin Test Leads
• Clip Type Probe
• Temperature Probe
• USB Cable to upload to a PC
• DC Clamp Meter for Ripple Measurement
• Serial Comm Excel Software
• Exmons Ultra Diagnosis Software
• Standard Charger (100 to 240 VAC)
• Hard Plastic Carrying Case
• IBEX-Ultra User Manual

Resistance and voltage testing is critical to determining the health of your batteries. Use the IBEX-Ultra portable battery tester for your resistance and voltage testing. Ohmic resistance represents the condition or state-of-health of the battery. It exposes weaknesses in cell and intercell connections without stressing the battery. Voltage testing determines state-of-charge in volts. Irregular voltages can indicate problems within the battery. Lack of maintenance is the single largest contributor of premature battery failure. The IBEX-Series battery testing kits are extremely effective in preventing battery failure and an essential component of any battery preventative maintenance program.

 Ensure you are testing per IEEE and NERC standards. The IBEX-Ultra meets IEEE Standards for "Recommended Practice for Maintenance, Testing and Replacement for Stationary Applications." Eagle Eye Power Solutions also offers complete IEEE/NERC Battery Testing Kits that include an IBEX-Ultra portable battery tester, our SG-Ultra Max Digital Hydrometer and Exmons Ultra+ All-in-One Software.

Applications:

• Utilities
• UPS
• Service Groups
• Oil, Gas, Fuel
• Green Energy
• Nuclear Power
• Municipalities
• CATV/Broadband
• Mining
• Hospitals
• Alarm/Emergency Lighting
• Motive Power
• Telecommunication
• Transportation
• Mission Critical Facilities
• Electronics
• Industrial Manufacturing
• Battery Manufacturers and Suppliers
