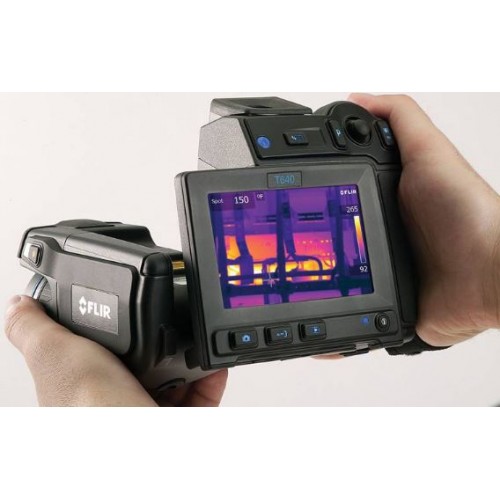

FLIR T630sc Advanced Science/Research Thermal Camera with 45 Degree Lens

About the FLIR T630sc Thermal Camera

Need a more reliable way to carry out thermal surveys instead of using thermocouples, RTD sensors and other temperature measurement techniques? FLIR's T630sc thermal camera is specifically designed for thermal scientific/research studies, helping you to visualise an entire scene in thermal and read the temperature of every single pixel in the image.

Easy to use and packed with functionality, this comprehensive thermal camera package includes everything you need for both capturing images and carrying out extensive analysis on a connected PC running either FLIR's software (included in the kit) or MathWorks MATLAB (sold separately) software for advanced image analysis and enhancement.

Example Image of the FLIR T630sc Thermal CameraExcellent Image Quality and High Thermal Sensivity

With the FLIR T630sc as part of your equipment, you'll be able to generate high quality, fully radiometric images and video (video requires direct streaming to a compatible PC) and get highly precise, reliable temperature readings across a wide spectrum.

The T630sc is compatible with several different thermal lenses which gives it the versatility to be used in many different applications. A lens is included as standard in the pack, with optional close-up microscope lenses available for purchase separately.

Users can expect the following out of this powerful thermal camera:

• Exceptional High Thermal Resolution of 640 x 480 Pixels - the T630sc produces high quality thermal images with 307,200 pixels of temperature data in every image captured
• 30Hz Fast Frame Rate - smooth image viewing even if the camera is moving, ideal for video analysis
• High Standard Thermal Sensitivity - spot minor temperature differences between different points with thermal sensitivity of <40mK
• Wide Temperature Range - the FLIR T630sc has two measurement ranges: -40 to 150°C or +100 to 650°C
• Accurate Temperature Measurements - reliable results within ±2°C or ±2% (whichever is greater)

See the Difference with FLIR MSX Technology and FLIR UltraMax Image Enhancement

Short for Multi-Spectral Dynamic Imaging, FLIR's unique MSX mode drastically enhances the quality of your captured thermal image.

The mode works by combining together the efforts of the T630sc's built-in thermal and digital lenses - both a thermal and digital image are taken together, then the T630sc extracts the digital detail from the digital image and blends it together with the thermal image.

Once done, you'll see a drastically improved thermal image with higher quality, clearly-defined object edges, making analysis even easier.

See for yourself the difference MSX makes in the image below:

This thermal camera also comes with FLIR's UltraMax mode; using the included software, you can use FLIR UltraMax to enhance the number of pixels in your captured images to up to 4x the standard quality (ideal for comprehensive research and analysis applications).

Comprehensive Analysis with FLIR ResearchIR Software (included as standard)

All T630sc thermal cameras ship as standard with a copy of FLIR's ResearchIR, an advanced, powerful thermal analysis software package that gives users the ability to control the camera, capture high-speed thermal images and create comprehensive reports based on your findings.

The software package includes a huge range of capabilities, such as:

• Multiple Measurement Analysis Tools - provides fast, detailed image analysis using spot, line, area and freeform measurement tools
• Advanced Tools - set object parameters, view source information, set the image segmentation tool and display the explorer file manager
• Customised Workspaces - use the 'float and dock' interface to arrange the displa of imagery, data, charts and plots. Charts can be 'docked' into the ResearchIR workspace or presented as free-standing windows
• Temperature, Radiance or Digital Counts Measurements - toggle between digital counts, radiance or temperature units when displaying, recording or analysing imagery
• Charts and Graphs - line profiles and histogram charts are easy to make for the entire image or any measurement tool
• Temporal Plots - measurement tools or functions can be plotted against absolute time, relative time or frame count
• Movie and Snapshot Analysis - perform analysis even when connected live to the camera, or use the playback mode with recorded snapshots and movie sequences
• Statistics Table - view measurement tool statistics and create custom functions for further analysis
• Emissivity Calculator - manually adjust the emissivity value for any measurement tool
• Spatial Calibrations - used to calibrate image pixels and measurements tools to length and area units like millimetres, metres, inches and feet
• Custom Thermographic and Radiometric Calibrations - a calibration wizard will guide you step-by-step through the creation of your own thermographic and radiometric calibrations
• Measurement Function Editor - create mathematic functions for custom measurement analysis and graphically present them on temporal plots

Additional Features

There's even more to the FLIR T630sc thermal camera! Features include:

• High Quality LCD Touchscreen - using the T630sc is as quick and intuitive as possible thanks a large, bright touchscreen combined with large, backlit buttons and a joystick
• Automatic Image Rotation - the screen of the T630sc will automatically adjust itself to compensate for the angle you're working at
• Automatic Hot/Cold Spot Mode - quickly and easily identify the hottest and coldest parts of an image
• Audible/Visual Alarms - set thresholds for temperature if the T630sc detects things outside the norm, it'll let you know about it
• On-Screen Emissivity Tables - adjustable emissivity caters for using the T630sc in different applications (for example on a shiny surface)
• Set up to 5 Measurement Spots with Delta T Functionality - quickly acquire and easily compare temperature data
• Image Annotations - add up to 60 seconds of voice annotations, text annotations, 4 x markers or sketch directly on images using the touchscreen
• Built-in Digital Camera - with 5.0 Megapixel quality
• Continuous Automatic or Manual Focus - take full control over your camera's focus or let it do the work for you
• USB/WiFi Command and Control - connect the FLIR T630sc wirelessly or via USB to a control point for seamless remote control
• Picture-In-Picture Mode - adds a thermal overlay window to your digital image, making it easier to hone in on a specific spot
• Powered by Lithium Ion Rechargeable Batteries - with up to 4 hours battery life per charge

What's Included?

• FLIR T630 Thermal Camera with Your Choice of Lens
• 2 x Rechargeable Batteries
• Battery Charger
• Bluetooth Headset
• Calibration Certificate
• FLIR ResearchIR Max 4 Software
• Printed Documentation
• HDMI-DVI Cable
• HDMI-HDMI Cable
• Hard Transport Case
• Lens Cap
• Memory Card
• Neck Strap
• Power Supply with Multi Plugs
• Tripod Adapter
• USB Cable (Standard A to Mini B)
