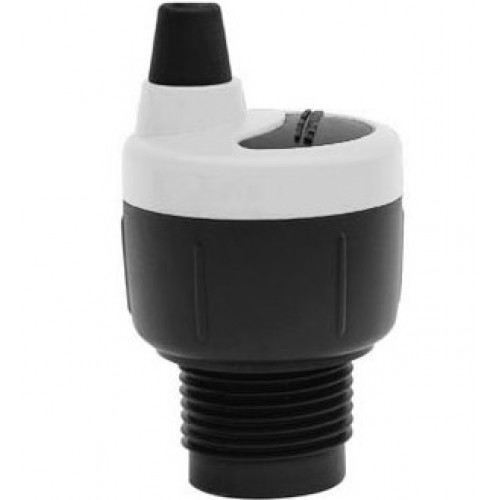

Flowline EchoPod DL10-10 Ultrasonic Liquid Level Transmitter

APPLICATION

The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2” (1.25m) with a 4-20 mA signal output, and is configured via our WebCal software. Select this sensor for small tanks with non-foaming, non-condensing or highly vaporous media such as chemical, water, wastewater and oil. Typical applications include chemical feed, skid or machine, IBC or drum and small waste sumps.

FEATURES

Continuous non-contact level measurement up to 49.2” (1.25m)

4-20 mA output for longer signal distances up to 1000’ (300m)

Configuration is fast and easy via WebCal software and USB adapter

Narrow 2” beam width and short 2” dead band optimized for small tanks

PVDF transducer and 6P polycarbonate enclosure for corrosive liquids

Automatic temperature compensation for accurate measurement
