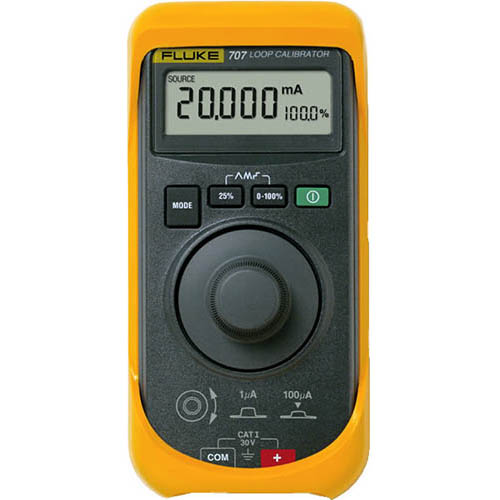

Fluke 707 Loop Calibrator with Quick Click Knob, .015% Accuracy

The Fluke 707 Loop Calibrator with Quick Click Knob is a high performance solution for calibration, repair and maintenance of current loops. The "Quick Click" knob makes it extremely fast and easy to use.

Product Features:

• One handed user interface with "Quick Click" detented knob
• mA sourcing, simulation and measurement
• 0.015% accuracy and 0.001 mA resolution
• Display mA and % of span simultaneously
• Selectable step or ramp outputs
• 24V Loop supply with mA measure, including 250Ω HART resistor
• 0V DC to 28V DC measurement to check loop voltage
• Removable battery door for quick battery replacement
• Compact case with protective holster
• Maximum voltage: 30 volts
• Non-operating temperature: -4° to 60°C
• Operating temperature: -10° to 55°C
• Relative humidity: 95% (10° to 30°C); 75% (30° to 40°C); 45% (40° to 50°C); 35 % (50° to 55°C)
• Operating altitude: 3,000 m max
• Shock: 1 m drop test
• Vibration: Random, 2g, 5 Hz to 500 Hz
• Safety ratings: CSA C22.2 No. 1010.1:1992
• EMC: EN50082-1:1992 and EN55022:1994 Class B
• Power: 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
