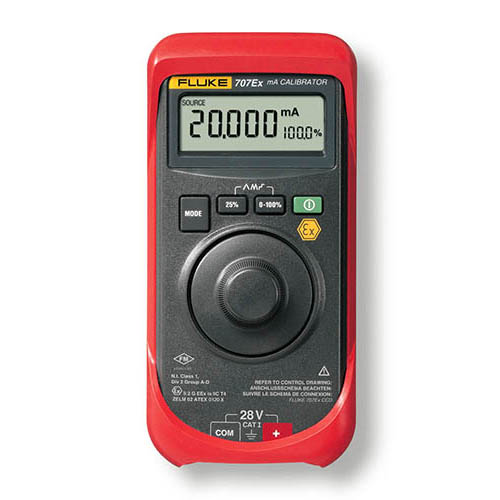

Fluke 707EX Intrinsically Safe Loop Calibrator, .015% Accuracy

The Fluke 707Ex Intrinsically Safe Loop Calibrator is for use in explosion-endangered areas. The 707Ex is certified in accordance with the ATEX directive (Ex II 2 G Ex ia IIC T4) in Zones 1 and 2; it is also certified to operate in accordance with Factory Mutual N.I. Class 1, Division 2 areas Group A-D.

Product Features:

• Large display with simple, quick-click push rotary button for one-handed operation
• Simultaneous mA and % readout for quick, easy, interpretation of readings
• mA accuracy of 0.015%
• Push button with 25 % steps for fast linearity checks
• 0-100% "span check" for speedy confirmation of zero and span
• Selectable slow ramp, fast ramp, and step ramp provides smooth outputs for valve slewing and loop tests
• Internal loop supply: power and read transmitter at same time, without digital multimeter
• Measures V DC to 28V
• Output adjustment dial with .001 mA and 0.1 mA resolution
• HART compatible resistance connected in series with loop supply for compatibility with HART communicators
