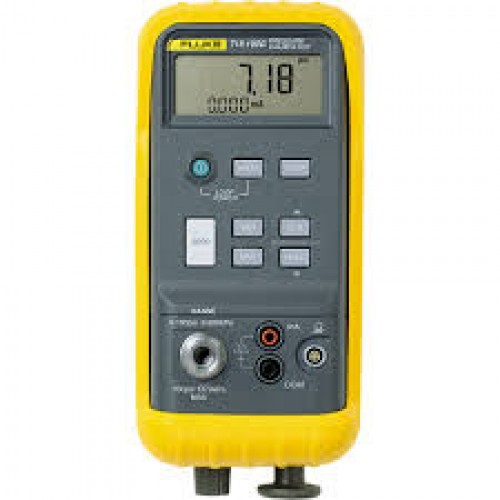

Fluke 718300G Pressure Calibrator

Fluke 718 Series Pressure Calibrator

Pressure Calibrator 300 PSIG

• Pressure Calibrator -12 PSI to 300 PSI, (-850 mbar to 20 bar, -85 to 2068.42 kPa )
• New 1 and 300 PSI pressure ranges mean fewer extra tools required
• Min/Max/Hold to capture changing measurements
• Error % calculation for quicker pass/fail decision making in the field
• Switch test feature for quicker and more accurate pressure switch testing
• 1, 30, 100 & 300 PSI ranges now available

The new Fluke 718 is a uniquely protected pneumatic pressure calibrator and pump. The new pump design uses protective check valves that allow air to pass through the pump for calibration but inhibits fluids from entering the pump and causing damage. These two check valves allow the bi-directional fl ow of air into or out of the 718. Even after draining the process fluid from the calibration port of the device under test, minute amounts of process fluids may often still be lurking behind. In the event these fluids enter the 718 pump cavities, the new pump design enables quick cleaning and maintenance, even in the field.

The Fluke 718 pressure calibrator family (4 models) provide a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique, easy to clean out access ports built into the pump protect the pump from fluids and provides the ability to service the pump without disassembly.

• Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
• Integrated pump is easily cleaned when accidentally exposed to fluids:
• reduces cost of ownership and repairs
• service the pump in the field
• Error % calculation for quicker pass/fail decision making in the field
• Best in class mA accuracy of 0.015 % for better measurement confidence and workload coverage
• Min/Max/Hold to capture changing measurements
• Switch test feature for quicker and more accurate pressure switch testing
• New 1 and 300 PSI pressure ranges mean fewer extra tools required
• 1, 30, 100 & 300 PSI ranges now available
