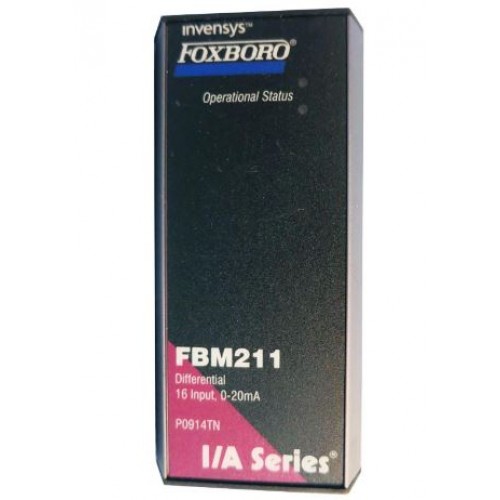

Foxboro FBM211 Input Interface Module
- ManufacturerFOXBORO
- Product Code: FBM211
- Availability: Pre-Order
-
Rp0
Manufacturer : Foxboro
Product No. : FBM211
Product type : Input Interface Module
Input : 16 group isolated and independent channels
Input Range (each channel) : 0 to 20.4 mA dc (each channel current limited to 33 mA)
Communication : Communicates with its associated FCM or FCP via the redundant 2 Mbps module Fieldbus
Input voltage range (redundant) : 24 V dc +5%, -10%
Power consumption : 7 W (maximum) at 24 V dc, 11 W (maximum) at 24 V dc with all inputs at 20.4 mA (internal power)
Dimensions (HxWxD), approx : 10.2cm / 11.4cm( including mounting lugs) x 4.5cm x 10.4cm
Shipping weight : 2 Kg
