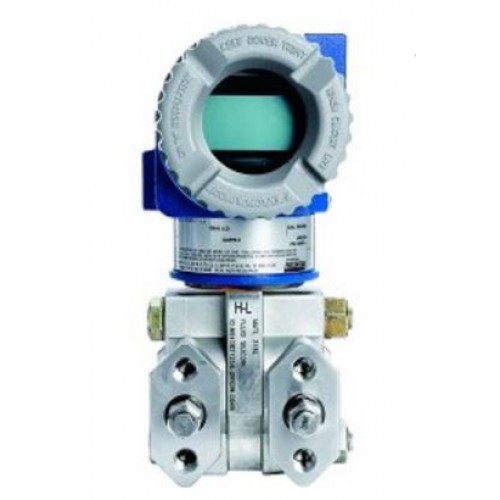

Foxboro IDP10S-T22C15AA-M1L1 IDP10S Differential Pressure Transmitter

Manufacturer : Foxboro

Product No. : IDP10S-T22C15AA-M1L1

Product type : IDP10S Differential Pressure Transmitter

IDP10S : Intelligent Differential Pressure Transmitter

Electronics Versions and Output Signal : T = HART and 4 to 20 mA

Structure Code - Transmitter with Traditional Structure (a) : 22 = 3626 psi, 316ss, 316L ss, Silicone.

Span Limits (Differential Pressure Units) : C = 2.5 and 1000 inH2O (at 68°F), 0.625 and 250 kPa, 6.25 and 2500 mbar.

Process Connector Type (material is the same as the process cover material) : 1 = 1/4 NPT

Conduit Connection and Housing Material : 5 = M20 Conduit Connection, Both Sides, Aluminum Housing

Electrical Certifications (Also see “ELECTRICAL SAFETY SPECIFICATIONS”) : AA = ATEX intrinsically safe, Ex ia IIC

Mounting Sets : M1 = Standard Style Painted Steel Bracket with Plated Steel Bolts

Optional Display, Internal Pushbuttons, and Cover : L1 = Digital display, pushbuttons, and window cover

Weight : 4.2 Kg

Shipping Weight : 6 Kg
