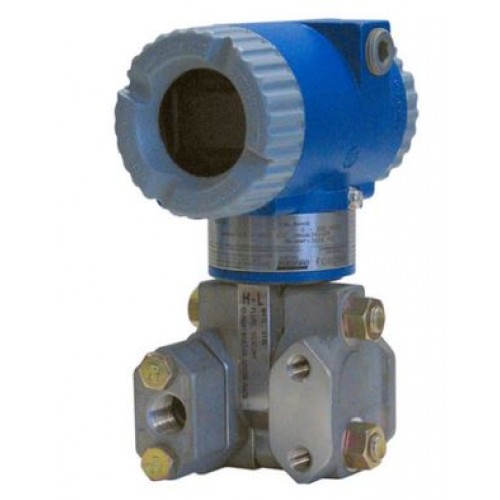

Foxboro IGP20-T22D5N-L1 Pressure Transmitters

Manufacturer : Foxboro

Sensor Corrosion Protection : Choice of 316L ss, Co-Ni-Cr, nickel alloy(3), Monel, Tantalum, and Gold-Plated 316L ss materials. High corrosion resistance of Co-Ni-Cr (TI 037-078) means long service life in many difficult applications without the extra cost for exotic materials.

Wide Rangeability : Gauge pressure measurement spans may be as low as 0.12 kPa (0.5 inH2O) to as high as 35 MPa (5000 psi) by choosing one of only six sensors, and absolute pressure measurement spans may be as low as 0.87 kPa (3.5 inH2O) to as high as 21 MPa (3000 psi) by choosing one of only four sensors.

Stability (Long Term Drift) : Less than ±0.05% of URL per year over a 5-year period.

Calibration Frequency : Five years

Fill Fluid : Silicone Oil or Inert FC43, as specified

Pressure Seal Diaphragm Material: Varies with pressure seal selected. See PSS 2A-1Z11 A.

Dimensions (HxWxD), approx : 12.4 x 9.6 x 20.8 cm

Shipping Weight : 6 Kg
