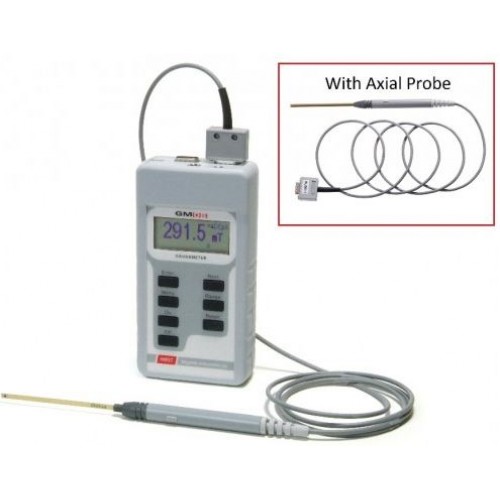

Hirst GM08AP Gaussmeter with Transverse and Axial probes

The GM08AP  is our entry level Gaussmeter. With a Transverse & Axial Hall Probe as standard, the GM08AP is suited to a wide range of applications where there is no requirement to export data from the Gaussmeter.

• DC accuracy of better than ±0.5% standard probe and Gaussmeter

• Standard sensitivity Transverse Hall probe included
• Range of Axial, Transverse, High Sensitivity and Fluxgate probes available to allow and extremely wide range of measurement
• Visible sensor point on probe
• Intuitive menu set-up with non-volatile memory
• Store measurements, up to 100 at a time
• Dot matrix display with menu driven functions
• Powered by 4x AA cells

With a Hirst Gaussmeter, you can rely on a product that has been developed with durability, precision and usefulness as core qualities. The GM08AP is robust enough for rugged shop floors and accurate enough for laboratory use. With a one year guarantee and calibration certificate included, the GM08AP Gaussmeter is ready to use and simple to operate.

Some example applications include:

• Computer disk Drive Actuators

• Loudspeaker Air Gaps
• Electric Motor air gaps
• Magnetic ‘strength’ testing for food industry separators
• Spot checking magnetic field strength for Non-destructive testing (magnetic particle inspection)
• Verifying compliance with IATA, IACO and FAA regulations on magnetism from packages to be shipped by air with AFG100 Fluxgate probe
• Non destructive Testing (Magnetic) with Robust option TP002R
• Goods inward and Quality Assurance Inspection
• Magnet calibration
• Transformer Stray Field measurements

The GM08AP is ideal for a wide range of applications. If you do not see your desired application on the list, or to ensure the GM08AP is right for you, please do not hesitate to contact us.

The GM08AP is a basic version of the GM08 Gaussmeter. Without external connectivity or the ability to connect to PC, the GM08AP is a hand-held Gaussmeter with a wide range of functions and applications at great value.

The GM08AP comes with the TP002 Transverse Hall Probe & AP002 Axial Probe, however, you may need an additional probe to suit your application. See our range of transverse and axial probes here.
