Joslyn Clark VC Series [VC77U03415-26] AC Vacuum Non-Reversing

Joslyn Clark

AC Vacuum Non-Reversing, VC Series

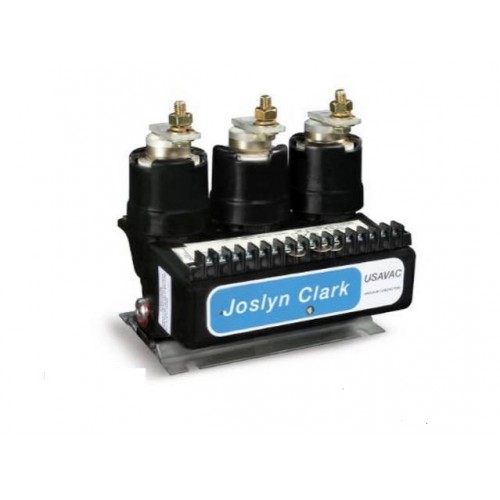

Item# VC77U03415-26 - CONTACTOR

VC Series Information

• Lightweight and Compact
• Fully Phase Insulated
• Mounts in Any Plane
• Energy Efficient
• Front Accessible

The Joslyn Clark USAVAC low voltage vacuum contactors and starters are ideal for applications from 200V to 3600V, and motor ratings for 50 to 500 Hp at 460 volts. Contactors and starters are available open or enclosed in Type 1, 3R, 4 & 12 enclosures for non‑combination, combination and reduced voltage applications.

Specifications

Item Number                :  VC77U03415-26

Brand                             : Joslyn Clark

Item Category               : Contactors

Subcategory                  : AC Vacuum Non-Reversing

Series                              : VC

Nominal Coil Voltage   : 240 VAC

Coil Voltage                   : 220/240 Volts AC

Max Load Voltage        : 3,600 Volts

Max Load Current        : 160 Amps

Rated Frequency          : 50/60 Hertz

Making Current             : 1,600 Amps

Breaking Current           : 1,600 Amps

Dielectric Strength         : 6KV / 1 min./45KV / 1.2 X 50 MS

Interrupting Current      : 4,400 Amps

Withstand Current          : 30KA-3Hz

Short Time Current          : 5,000/3,000 Amps

Switching Frequency        : 600/hr

Chop Current                    : 0.55 to 0.9 Amps

Rated Control Voltage     : 120/240V 50/400Hz

Allowable Fluctuation      :10.25

Closing Power VA             : 950VA/17ms

Holding Power                  : 9 Volt-Amps

Opening Time Ave            : 90ms at 60Hz

Closing Time Ave.             : 17ms at 60Hz

Approvals                           : UL;CSA;CE

Pick-Up Voltage                 : 90 Volts

Comments                         : 1.5KV No.3 Pole

Operating Temperature  : -40~135

Vibration/Shock                : 40Hz - 2G./30G.

H x W x D                           : 8.8 in x 7.4 in x 7.8 in
