KETT LE-200J ELECTROMAGNETIC COATING THICKNESS TESTER WITH IN BUILT PRINTER
- ManufacturerKETT
- Product Code: LE-200J
- Availability: Pre-Order
-
Rp0

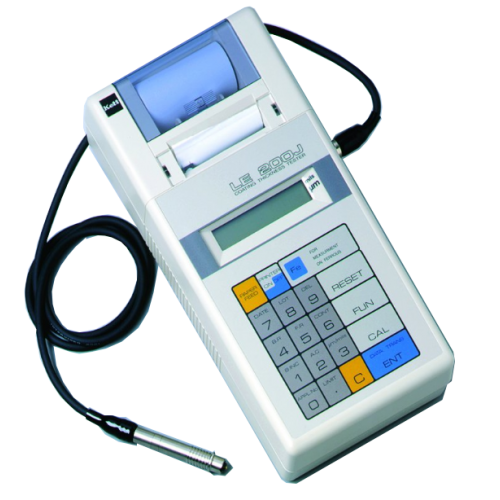

The LE-200J is a portable coating thickness tester with a built-in printer. This unit can accurately and quickly measures many items such as magnetic plating (electrolyzed nickel plating not included), coating, painting, and lining without injuring or damaging the item. Furthermore, you can print out the measurement results on-site with the internal printer
| Specifications | LE-200J |
|---|---|
|
Measurement method |
Electromagnetic Induction |
|
Applications |
Non-magnetic coating on iron and steel (ferrous) substrates |
|
Measurement range |
0-1500μm or 60.00mils |
|
Measurement Precision |
Under 15μm: ±0.3μm, 15μm or greater: ±2% |
|
Resolution |
0.1μm (less than 100μm), 1.0μm (100μm or greater) |
|
Statistical functions |
Number of measurements, Average value, Standard deviation, Maximum value, Minimum value, Block numbers |
|
Probe |
One-point contact fixed pressure (LEP-J) |
|
Display format |
Digital (LCD, smallest displayed unit 0.1μm) |
| Output | RS-232C interface (transmission speed-2400bps) |
| Power source | AC100V/220V(50/60Hz) or 1.5 ("AA" size Alkaline batteries) x 6 (main unit), Printer ("AA" size Alkaline batteries) x 4 |
| Dimensions & Weight | 120(W)x250(D)x55(H)mm, 1.0kg / Shipment 2.5kg |
| Accessories | Calibration Plate, Iron Substrate, Batteries (1.5V, "AA" Size Alkaline), Probe Adapter, AC Adapter, Printer Paper, Carrying Case |
| Options | L Probe LEP-21L(Probe for use on the inside surface of pipes),Data Management Software "McWave Series" and "MultiProp" (McWave Series and MultiProp are products of CEC Co.) |
