Megger MIT1025 10kV Insulation Resistance Tester

Megger MIT1025 10kV Insulation Resistance Tester Details

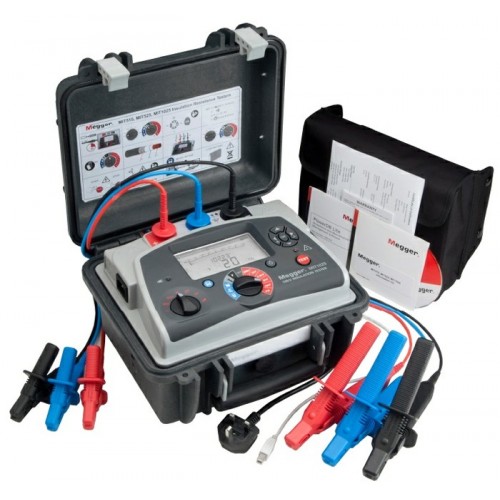

Housed in its own protective casing, the Megger MIT1025 is a hard-wearing insulation resistance tester that can be used to measure resistance levels up to an extremely high threshold of 20TΩ.

The MIT1025 can perform PI, DAR, DD, SV and ramp testing procedures and can also be used to test even when the battery is dead by feeding into power from line power/mains. The batteries inside the device are fully rechargeable and make use of quick charge technology to ensure there's less waiting around and more testing being carried out.

Inside the tester's case the MIT1025 has a large, clearly visible screen which relays test results, and this can be used to relay information about voltage, leakage current, capacitance, battery status and time constant, as well as the overall elapsed time of the testing procedure.

The MIT1025 is CAT IV 600V safety rated.

Megger MIT1025 Insulation Resistance Tester Key Features

• 20TΩ maximum insulation resistance
• Timed IR plus PI and DAR diagnostic testing
• Can operate even when batteries are dead when hooked up to on line power/mains
• Rapid charge battery gives up to 6 hours continuous testing
• Dedicated voltmeter functionality from 30V to 660V
• CAT IV 600V safety rated
• Large built-in LCD screen with automatic backlight for use in darkened conditions
• Noise filter automatically filters out electrical noise up to 3mA
• Dielectric discharge, step voltage and ramp testing functions
• In built memory stamps data with time/date information and allows users to recall tests
• Download data directly to PC via USB connection
• Compatible with PowerDB Lite software package

Full List of Products Included

• Megger MIT1025 Insulation Resistance Tester
• User Guide CD
• Power Lead
• 3m Leadset x 3 with Medium Insulated Clips
• 3m Leadset x 3 with Large Insulated Clips
• USB Cable
• PowerDB Lite Software
