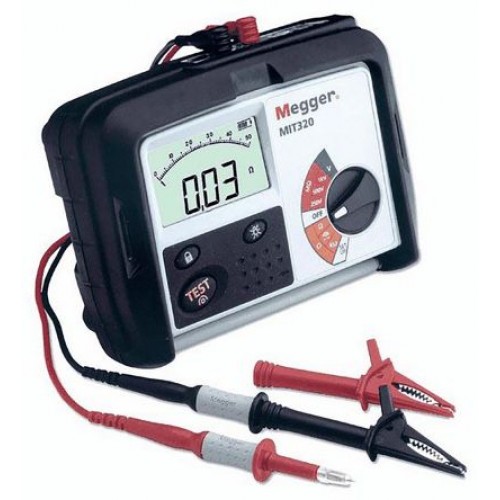

Megger MIT320 Insulation and Continuity Tester

Megger MIT320 Insulation and Continuity Tester Details

The Megger MIT320 is the second-highest specification model available in Megger's MIT300 series and is the upgraded version of the MIT300, MIT310 and MIT310A.

A powerful, handheld and easy to use insulation and continuity tester, the Megger MIT320 is made tough for use on site, with rubber armoured casing and rigid display cover which locks down to protect the tester when not in use.

Megger's MIT320 can perform insulation tests with test voltages of 250, 500 and 1000V with maximum testing range of up to 999MΩ. Testing procedures can be activated directly from the tester, or alternatively you can use the switched probe supplied with the MIT320 to activate the tests remotely. For added convenience, continuity testing will automatically activate when connected to the circuit.

The main exclusive additions which are added to this unit compared to other MIT300 units include an insulation limit alarm (from 0.01MΩ to 999MΩ), adjustable continuity buzzer (1 to 20Ω) with the ability to disable and the ability to carry out resistance measurements from 10Ω to 1MΩ.

Megger's MIT300 series is built with safety in mind - this insulation tester includes a number of protective safety measures including a Safety Interlock which will prevent unsafe test lead connection, safe contact detectors which will protect the tester even if the MIT is connected to live circuits when on continuity setting and even a safety lockout which will prevent the test from operating if voltage is above 50V.

Megger MIT320 Insulation and Continuity Tester Key Features

• Insulation testing at 250, 500 and 1000V with test range of up to 999MΩ
• Insulation limit alarm with range from 0.01MΩ to 999MΩ
• Continuity testing to 100Ω with buzzer (adjustable from 1 to 20Ω - can be disabled)
• Lead null to 9Ω
• Voltage measurements to 600V (AC/DC)
• Resistance measurements from 10Ω to 1MΩ
• Backlit LCD display for use in poor lighting conditions
• Locking test button for continuous testing
• Automatic power off
• Switched test probe allows tests to be remotely activated without actually touching the meter
• IP54 weatherproof design
• Suitable for use with rechargeable batteries
• Rigid display cover folds over the unit to protect it during transportation
• Colour-coded ranges make it easier to select the test you want
• Hangs comfortably around the neck for hands-free use
• Automatic continuity test activattion when connected to a circuit
• Safety interlock prevents unsafe test lead connection
• Safety lockout prevents the test from operating if voltages above 50V are detected
• Meets and exceeds the standards of the UK/International Wiring regulations including BS7671, VDE 0413 Parts 1 and 4, HD 384, IEC 364, NFC15-100, NEN3140, ES59005 and EN 61557
• Includes 3 year warranty from Megger

What's Included?

• Megger MIT320 Insulation and Continuity Tester
• Test Leads Set with Crocodile Clips (1002-001)
• SP4F Switched Probe (6220-809)
