Metrel MI 3290GX4 Earth Analyser - GX4 Set

Metrel MI3290GX4 Earth Analyser - GX4 Set Details

The MI 3290 Earth Analyser is available in multiple sets which are a combination of different accessories and measurement functions, please note some functions may only work if you have relevant accessory,  please refer to the set specifications below.  The functionality of an existing set can be expanded by ordering additional accessory and license keys.

Metrel MI3290 GF - Licence key for Grounding and voltage Funnel functionality of Earth Analyser.

Metrel MI 3290 GL - Licence key for Grounding and Lightning functionality of Earth Analyser.

Metrel MI 3290 GP - Licence key for Grounding of Pylons functionality of Earth Analyser.

Metrel MI 3290 GX – Licence key for all of the above.

Metrel’s MI3290 Earth Analyser is designed for diagnosing:

• Earth Resistance
• Earth Impedance
• Selective Earth Impedance
• Specific Earth Resistance
• Earth Potential
• DC Resistance
• AC Impedance & Impulse Impedance

And is capable of performing the following functions:

• Earth Impedance or Resistance 2, 3, 4 – pole
• Selective Earth Impedance (Iron Clamp and up to 4 Flex Clamps)
• 2 Clamps Measurement
• HF - Earth Resistance (25 kHz)
• Passive (Flex Clamps 1 - 4) method
• Specific Earth Resistance ρ (Wenner, Schlumberger method)
• Ω - Meter (7 mA and 200 mA)
• AC Impedance Meter (55 Hz – 15 kHz)
• Impulse Impedance (10/350 µs
• Earth Potential and Step & Touch Current Source (200 mA)
• Pylon Ground Wire Test
• Current RMS Measurement (Iron and Flex Clamps)
• Checkbox
• Auto Tests
• Memory Organizer

The MI 3290 GX licence key includes the capability for all measurement modes:

• Earth / Ground Mode

• Pylon Mode
• Lightning Mode
• Project Structure
• Visual Inspection Mode
• Functional Inspection Mode
• Funnel Mode

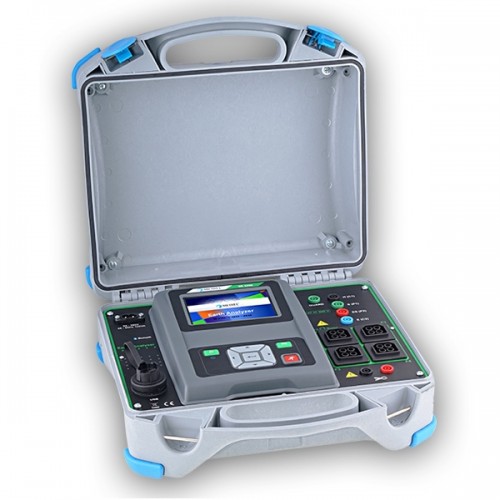

The MI 3290 Earth Analyser is a multi-function device capable of carrying out various tests and diagnostics in earth analysis. It is mains or battery powered and built inside an IP65 rated case (IP54 when open) and is suited to those with experience in the field, the tester itself is simple to use, with a 4.3” colour touch screen, easy to read results and intuitive menu system, the tester can be used without the need for any special training. The screen provides the user with helpful message field warnings such as test information and warnings, battery level indication, a virtual keyboard, various indication messages and limits parameter indications which can be accompanied by a beep to warn the user.

Help menus are available which provide the user with diagrams illustrating the proper connection of the instrument to the unit that requires testing.

The user can customise test sequences which can be easily accessed from the main screen for quicker procedures. Autotests can be pre-programmed on PC with the Metrel ES Manager software and uploaded to the MI 3290 Earth Analyser.

Test results can be stored on internal memory and evaluated and archived at a later date on the PC software. The Metrel ES Manager software which is included is for measurement pre and post-processing: preparation of the test structure, result download, tree-view, table view and graphical view, storing and printing.

High electrical noise immunity makes this instrument best suited for an industrial environment but not limited to. Other applications can include:

• Mono and multi-leg pylons with protective earth cable connected
• MV to LV transformer stations
• Ski lifts, radio towers
• Solar Power plants, wind and water turbine

Key Features

• Analysis of earth impedance as a function of the frequency due to a wide measurement frequency band
• 3.4’’ colour LCD display with a touchscreen and easy to read display
• Adheres to a wide range of Functionality. Electromagnetic and safety standards (see datasheet for full list)
• Mains or battery powered
• IP protection (IP 54 open case)
• High electrical noise immunity
• Best suited for the industrial environment
• Battery and time indication
• Touch gestures recognised on-screen display
• Virtual keyboard on screen
• Sound indication for limit parameters
• Help screens and connection diagrams
• Autotests - customized test sequences
• Power save options
• Bluetooth communication
• MicroSD card compatible
• Workspace manager organises all measurements, parameters, limits, structure objects of an individual work
• Memory Organizer for storing and working with test data
• Define user-parameters
• Graph view of results
• Carry out Earth measurements using different methods which are selected by the user
• Checkbox - effective means of checking the Earth Analyser
• A wide variety of measuring clamps: from iron clamps to flex clamps with 10 m length. HF-Earth resistance measurement (acc. to IEEE_Std 81).DC resistance measurements
• Single or automated measurements
• Analysis of earth impedance as a function of the frequency due to a wide measurement frequency band (55 Hz ... 15 kHz)

Whats Included?

• Instrument MI 3290
• Current earth spike 90 cm, 2 pcs
• Potential earth spike 50 cm, 2 pcs
• Connection lead black 2 m
• Test lead 5 m blue
• Test lead 5 m red
• Test lead 50 m black on cable reel
• Test lead 50 m green on cable reel
• Test lead 50 m blue on cable reel
• Shielded test lead 75 m on reel
• G clamp
• Set of test probes, crocodile clip and 2 m test lead, 4 pcs
• Bag for accessories
• USB cable
• Mains cable
• Calibration certificate
• Instruction manual
• PC SW Metrel ES Manager

The GX4 Set also includes:

• Iron clamp A 1018 with 3,5 m test lead

• Iron clamp A 1019
• Flex clamp 5 m with 15 m shielded cable
• Continuity test lead, with crocodile clip, 2 x 2.5 m, 2 pcs
• Voltmeter MI 3295M with 2 wire test lead
• Includes also: RS 232 and USB cable, soft carrying neck belt
• Flex clamp 5 m with 15 m shielded cable, 3 pcs
• Bag for accessories
• Soft carrying bag
• Step voltage test plate, 2 pcs
• NiMH battery cells, type AA, 6 pcs
• Power supply adapter
• Bag for accessories
