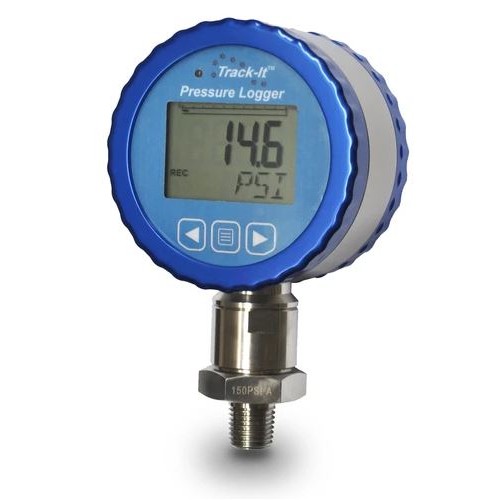

Monarch 5396-0334 Track-It Pressure/Temp, Vacuum/Temp Data Logger With Display

The Track-It™ Pressure/Temperature and Vacuum/Temperature Data Logger with Display is a battery-powered, stand-alone, watertight compact data loggers that record up to 130,000 samples. They can be configured to record both pressure or vacuum and temperature or either parameter alone to maximize data storage space. Real-time data, alarms and min./max. information can be displayed on the multiline LCD. The unit is easily configured using the included Track-It™ Software; simply connect the included USB cable to the logger and an open USB port on your PC and the Track-It™ Software automatically identifies the logger. Configure the unit to start or stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 10 samples per second up to 1 sample every 24 hours. The onboard data storage is non-volatile so data will not be lost in the event of a depleted battery. Track-It Pressure/Temp and Vacuum/Temp Data Loggers can be ordered in various ranges (see below). The logger is packaged in a rugged submersible anodized aluminum and stainless steel housing and has a standard 1/4” NPT fitting (1/2" NPT for 8700 and 14,500 ranges). The replaceable internal lithium battery has up to a 3-year life.

Typical Uses

• Industrial Process

• Food Manufacturing
• Water Supply Line
• Hydrant Water Pressure
• Household Water Pressure
• Building Supply
• Municipalities
• HVAC
• Oil and Gas
• Petro Chemical
• Compressors
• Pumps
• Hydrostatic Testing
• Water and Wastewater
