MURPHY MLS-015-TF LIQUID LEVEL SWITCH PART NO 15700905

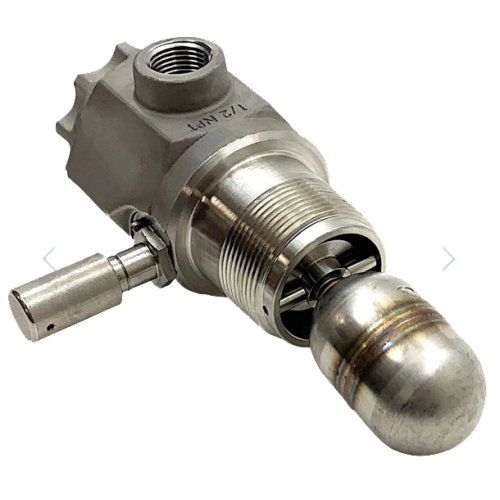

MLS-015-TF Liquid Level Switch (15700905)

The MLS-015-TF Liquid Level Switch is float activated to operate an electrical SPDT reed switch for annunciation/pilot signal for indication of high level to an annunciator, controller or PLC.

The MLS-015-TF connects directly into the gas scrubber wall and can be used with an FW Murphy weld collar or external float chamber.
The MLS-015-TF's process connection is 1-1/2 in. NPT. The test button tests for float function; the complete mechanism including the magnetic activation of the reed switch; and the wiring from the switch to the control panel.

Features:

• Clean magnet design virtually eliminates iron filing accumulation on the magnet
• Seal-free construction
• ANSI/ISA 12.27.01 compliant (Single Seal)
• Push button to test functions
• Operates in 0.50 specific gravity or heavier fluids
• Designed for harsh gas compressor scrubber applications
• 304 cast equivalent SS body and 304 SS float
• Rated for 2000 psi (13.8 MPa) [138 bar] working pressure
• Trip on rising and falling without need to rotate body
• Electric model only available
• Screws directly into the scrubber, or can be mounted via an FW Murphy External Float Chamber
• CSA C/US Class I, Div. 1, Grp. B, C & D locations
