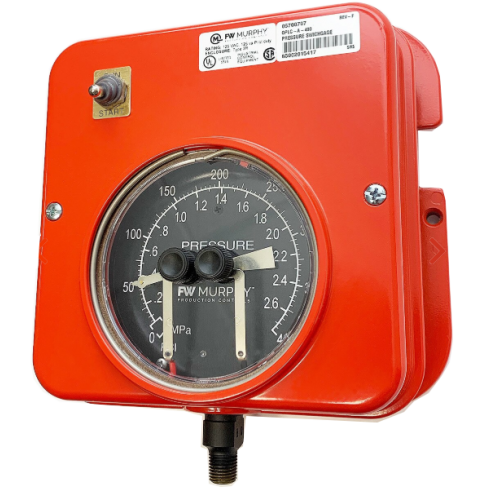

MURPHY OPLC-A-400 PRESSURE SWICHGAGE PART NO 05700707

The OPLC-A-400 is a surface mounting 4.5" (114 mm) Pressure Swichgage®, with a range of 0-400 psi (0-2.76 MPa) [0-28 bar].
This instrument is a combination pressure indicating gage with an adjustable low and high limit switch. The limit switch can be wired directly to electric pilot circuits to operate alarms and/or shutdown engines and electric motors. The limit switch is accessible from the front of the gage and the contacts have a self-cleaning motion to enhance electrical continuity.
Inside the OPLC-A-400, pointer closure against either of the adjustable contacts completes the pilot-duty circuit. An SPST toggle switch is provided to override the low limit contact for equipment start-up. This model does not latch. Suitable for engines or electric motors with appropriate Murphy magnetic switch or transformer relay assemblies.
The OPLC-A-400 has a weatherproof die cast aluminum case, a clear polycarbonate lens, a 1/4 NPT process connection, a grade A phosphor bronze bourdon tube (brass tip/silver brazed) and a brass socket.
