MURPHY OPLFG-S-2000-OS PRESSURE MURPHYGAGE PART NO 05701371

OPLFG-S-2000-OS: Panel Mount 4.5" Pressure Murphygage®; Stainless bourbon tube; 0-2000 psi; Oil Sealed  (05701371)

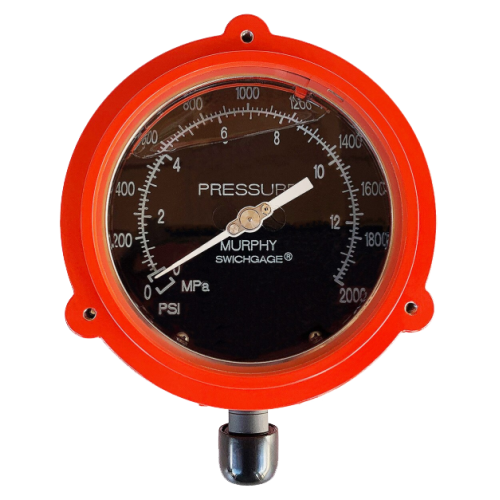

The OPLFG-S-2000-OS is a panel mounting 4.5" Pressure Murphygage® with a range of 0-2000 psi (0-13.79 MPa) [0-140 bar].
This is an indicating only pressure instrument with an oil sealed case. It has a "drawn helical" type bourdon tube with a 1/2 NPT process connection.
The bourdon tube and tip material are 316 stainless steel. There are no contacts for signaling. The OPLFG is similar to the OPLFC except without switch (limit) contacts.
