Murphy PV380 PowerView Display Part No.78700609 replaces PV101

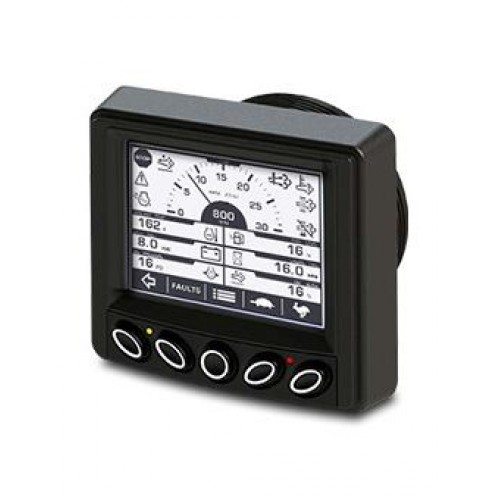

MURPHY'S POWERVIEW™ 380 IS A CONFIGURABLE, MULTIFUNCTION DISPLAY FOR ELECTRONIC AND MECHANICAL ENGINES

The PowerView™ 380 features a robust, multifunction display for advanced monitoring of multiple engine and machine parameters on an easy-to-read 3.8-inch (97mm) QVGA monochrome LCD. The display is capable of handling sophisticated engine diagnostics as well as basic engine alarm/shutdown. This panel is equipped with five tactile push buttons to quickly access a convenient menu. In addition, a backlit, heated graphic display and two LEDs indicate active-fault alarm or shutdown status.

The PV380 display is customizable using the PowerVision Configuration Studio® , an intuitive tool designed to make personalization simple. Using the software tool, users can tailor basic graphics, designate screen layout and define custom parameters. Murphy's Configuration Studio™ software is available for purchase as an option. It is NOT included with your purchase of the PV380 display.

Features:

• For Use on Mechanical & Electronic Engines

• Easy-to-Use Configuration Software (optional add-on)

• Tier 4/Euro Stage IV Ready

• Set Point Alarm and Shut-down Control

• CAN J1939 Communications

• Supports Multiple Languages

Technical Specs:

• Display: 3.8” (97 mm) QVGA (320 x 240 pixels); monochrome transflective LCD with white LED backlight, heater and real-time clock

• Viewing Angle: ±55° horizontally; +45° / -60° vertically

• Keys: 5 tactile pushbuttons

• Alarms: Red and amber warning LEDs; capable of set points-triggered output for external piezo buzzer or shut-down relay

• Certifications: CE mark

Communications:

• (1) CAN 2.0B

• (1) RS-485 serial

• J1939 protocol

• Proprietary messaging

Inputs:

• (4) resistive analog

• (3) analog: 0-5V, 4-20mA analog or digital

• (1) frequency 2-10,000Hz, 3.6-120VAC

Outputs:

• (2) 500 mA; switched low-side

Connectors:

Deutsch DT series 6 pin and 12 pin

Environmental:

• Operating Voltage: 6-36 VDC; reverse polarity protected

• Operating Temperature: -40°C to 85°C (-40° to 185°F)

• Storage Temperature: -40°C to 85°C (-40° to 185°F)

• Sealing: IP 66 and 67

• Vibration and Shock: 7.86g random vibe (5-2,000Hz) and ±50g shock in three axes

• EMC/EMI: 2004/108/EC and 2006/95/EC directives

EN61000-6-4: 2001 (emission)

EN61000-6-2: 2001 (immunity)

EN 50121-3-2 and EN 12895

• SAE J1113/2, 4, 11, 12, 21, 24, 26 and 41
