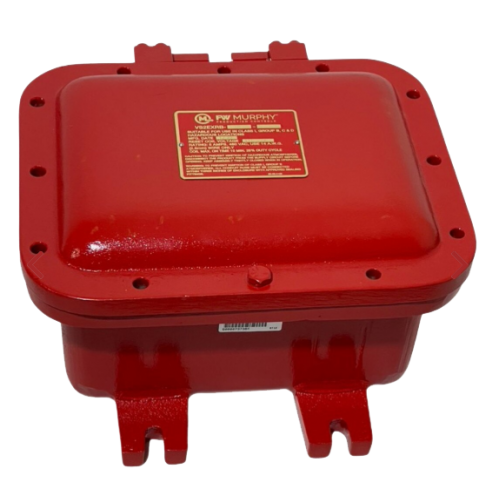

MURPHY VS2EXRB-15 VIBRATION SWITCH PART NO 20700057

VS2EXRB-15:  Vibration switch, explosion proof, remote reset, Group B location, SPDT. 115 VAC (20700057)

The VS2 Series switches are shock-sensitive mechanisms for shutdown of engine or electric motor-powered equipment. It is designed to detect shock/ vibration in three planes of motion. These fully adjustable switches use a magnetic latch to ensure reliable operation. Explosion-proof EX models for hazardous locations are available. Ideal for use on engines, pumps, compressors, heat exchangers and pumping units, the VS2 Series can be used where shut-down protection from damaging shock/vibration is desired. Switches are field adjustable to the sensitivity required in each application

VS2EXRB

• Case: Explosion-proof aluminum alloy housing; designed to meet Class I, Division 1, Group B hazardous areas
• Certification: No third-party certification
• Snap switch: 1-SPDT snap switch with reset coil (option available for 2-SPDT switches); 5A @ 480 VAC; 2A resistive, 1A inductive, up to 30 VDC
• Remote Reset: 115 VAC or 24 VDC (specify)
• Shipping Weight: 17 lb. 8 oz. (7.9 kg)
• Shipping Dimensions: 12 x 12 x 10 in. (305 x 305 x 254 mm
