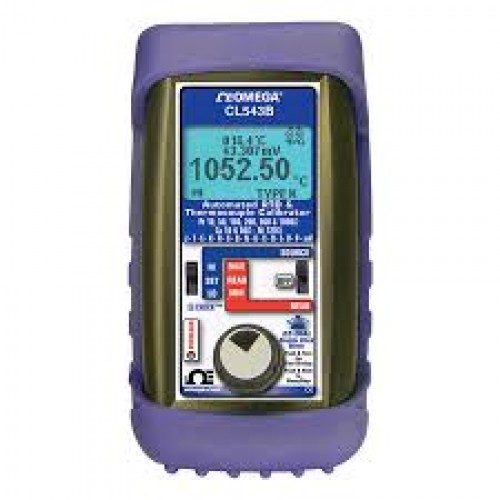

Omega CL543B Thermocouple and RTD temperature calibrator

THERMOCOUPLE CONNECTIONS

Simulating or reading thermocouples requires the use of thermocouple or extension grade thermocouple wire. Plug thermocouple wires into the miniature thermocouple jack or place bare thermocouple wires onto the brass block under the screws.

The CL543B has two banana jacks (1+ and 2-) mounted in the top end of the housing. These are not temperature compensated and are to be used only for millivolt signals.

RTD CONNECTIONS

Simulating or reading RTDs uses copper wire. Plug 2-, 3- or 4-wires into the corresponding jacks on the calibrator. For RTD source the CL543B simulates the (+) RTD from jacks 1 and 4 and the (-) RTD from jacks 2 and 3. When reading an RTD sensor the CL543B uses patented circuitry to automatically detects if 2-, 3- or 4-wires are connected. This is helpful to troubleshoot sensor connections.

• Calibrate Thermocouple Instruments to 0.1 and 0.01, °F and °C Types J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), (T-DIN) and P (Platinel): -13.000 to 80.000 mV
• Calibrate RTD Instruments to 0.1 and 0.01, °F and °C Pt 10, 50, 100, 200, 500 and 1000 (3850) Pt 100 (alpha = 3902, 3916, 3926) Cu 10 and 50 and Ni 120
• Calibrate with Confidence Resolution to 0.01, °F and °C; Accurate to 0.2° Cold Junction Sensor Accurate to 0.05°C NIST Traceable Cold Junction Sensor in Isothermal Block
• Troubleshoot RTD Sensors and Instruments Automatic Detection of 2-, 3- or 4-Wire Connections Indicates When Individual Wire Connections are Open Verify Proper Instrument Operation by Measuring the Excitation Current
• Fast Easy Calibrations Instantly Select 3 Outputs with the EZ-CHECK Switch Easily Find Trip Points with 2 Speed EZ-DIAL Knob and Automatic Stepping
• Verify Resistance, Cold Junction Temperature and Output Secondary Display of Resistance for RTDs and Compensated millivolt Setting, and Cold Junction Temperature for Thermocouple Use in the Plant, Field or Shop Includes Rubber Boot and mV Test Leads Low Profile Switches Resist Accidental Damage Brass Screws for Thermocouple Wires Plus Miniature Thermocouple Socket
• Perform Heat Treating Surveys and Accuracy Tests Meets or Exceeds the Requirement of AMS 2750 as Both a Secondary Standard Instrument and as a Field Test Instrument
• NIST Cert (No Points)
