PCE RDM 15 Radiation Detector
- ManufacturerPCE Instruments
- Product Code: RDM 15
- Availability: Pre-Order
-
Rp0
Radiation Detector / Measurement of beta, gamma and X-rays / Adjustable limit values / Progression diagram / Minimum, maximum and average values / Internal memory with PC transfer via software

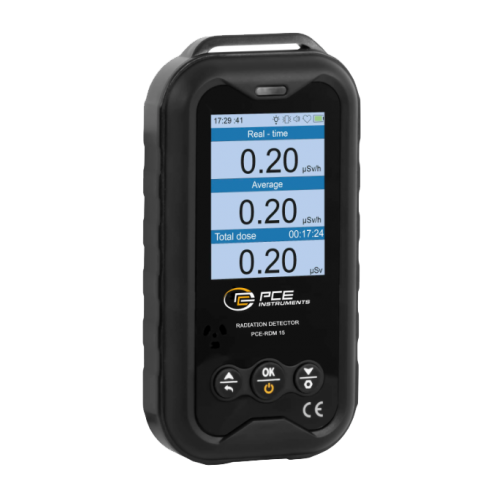

The Radiation Detector is a portable device mainly used for monitoring X, γ and β radiation. The Radiation Detector is equipped with a glass Geiger-Müller counter tube (GM tube), which is known for its high measurement accuracy and sensitivity, and has a 2.4-inch TFT LCD display.
The Radiation Detector offers audible, visual and vibration alarms with customizable dose rate and total dose limits. It enables simultaneous real-time measurement of the dose rate and recording of the cumulative dose over a set period of time. In addition, the device displays the minimum, maximum and average values of the measurements.
The supplied software enables live measurement and data transfer from the internal memory. Thanks to its compact design, energy efficiency and versatility, the Radiation Detector is ideal for both professional and private use.
Highlights
- Real-time value, average value, total dose
- Sensitivity: 1 cps/μSv/h (related to Co-60)
- Adjustable alarm limit for total dose
- Adjustable time dose
- Long-term measurements
- Radiation events in CPS and CPM
- Data memory and software
- Mounting clip
Specification
| Radiation | |
| Measurement type | Real-time value |
| Measurement range up to | 0,01 µSv/h ... 50 mSv/h |
| Resolution | 0,01 µSv/h |
| Accuracy | <10 % at 1 mSv/h |
| Radiation | |
| Measurement type | Total dose |
| Measurement range up to | 0 µSv ... 1000 Sv |
| Resolution | 0,01 µSv |
| Accuracy | <10 % at 1 mSv/h |
| General technical data | |
| Measuring functions | MIN, MAX, Average value |
| Types of radiation | Beta radiation, Gamma rays, X-rays |
| Energy range | 48 ... 1500 keV |
| Display type | LCD |
| Display size | 2,4 Inch |
| Storage medium | Internal memory |
| Storage capacity | 10000 Values |
| Interface | USB-C |
| Sensor | Geiger-Mueller counter tube |
| Operating time | 30 Day(s) |
| Alarm | optical, Acoustic, Vibration |
| Alarm modes | Setting range for the dose rate: 0 ... 9.99 µSv/h Setting range for total dose: 0 ... 9999 µSv |
| Sensitivity | 1 cps/μSv/h (related to Co-60) |
| Menu language | English, Chinese, English (GB) |
| Protection class (device) | IP52 |
| Power supply | 5V DC |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium polymer battery |
| Capacity | 1800 mAh |
| Operating conditions | -10 ... 45 °C , 0 ... 95 % RH |
| Storage conditions | -10 ... 45 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 127 x 65 x 32 mm |
| Weight | 160 g |
Delivery Scope
1 x PCE-RDM 15 Radiation Detector
1 x USB-C cable
1 x Operating manual
