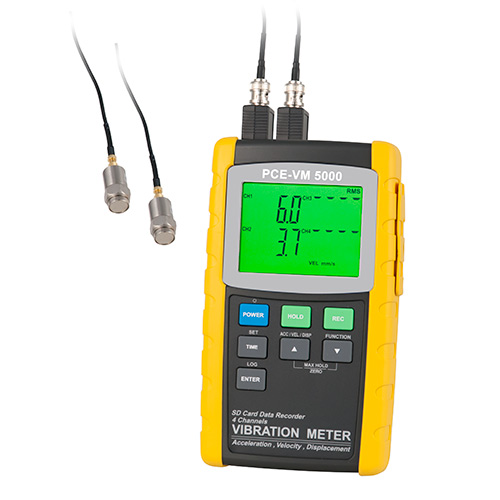

PCE-VM 5000 [PCE VM5000] Vibration Analyzer

Vibration Analyzer PCE-VM 5000 display and storage of acceleration, speed and expansion measurement of vibrations/ 4-channel vibration Vibration Analyzer indicates 4 channels of simultaneous Vibration Analysis through remote vibration sensors

The 4-channel PCE-VM 5000 Vibration Analyzer is especially designed for precise measurements of vibrations. Despite the fact that the 4-channel vibration Vibration Analyzer is a complex and sensitive device, its hardened design enables operation for many years. The PCE-VM 5000 Vibration Analyzer indicates on a large, lightened LCD display four channels of simultaneous vibration measurements from remote vibration sensors. The Vibration Analyzer measures in a frequency range of 10 Hz to 1 KHz for speed, acceleration, and displacement. The captured data values are saved on a SD memory card where you can choose between automatic and manual data storage. By means of the SD memory card the data can be transferred afterwards to a computer in order to analyze it in an excel file. With the PCE-VM 5000 Vibration Analyzer you can choose between different measurement units: for acceleration, the unit m/s², g, and ft/s² are able to be selected; for speed, mm/s, cm/s and inches/s can be used; and for the displacement, mm and inches can be indicated.

- Frequency range: 10 Hz ... 1 kHz

- Measurement of acceleration, velocity and displacement

- Connection of up to 4 sensors simultaneously, 2 included

- Data storage on SD card

Manufacturer: PCE Instruments
